Application

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops.

Scope of delivery

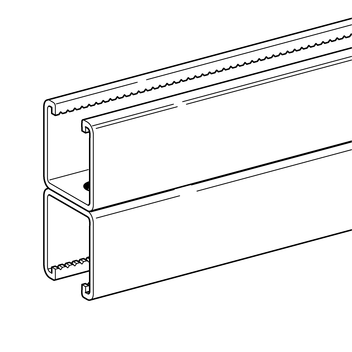

Double channels are joined together by clinching, guaranteeing corrosion protection at the joining.

Installation

If required, channels can be joined on site using:
Slot pattern II:
Hexagon socket bolt M8 x 16, with a max. spacing of 250 mm between connecting points one point at each end.
Slot pattern III and IV:
Clamping Unit KL (for details see product.

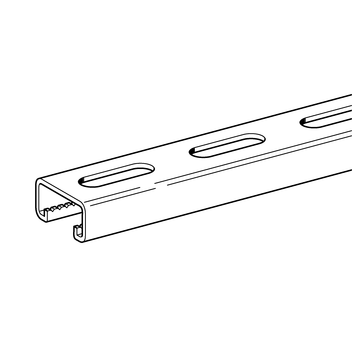

All Channels MS 41 are serrated on the inner edges and thus can be combined with many other Sikla products, e.g. Channel Nut, End Support WBD, Beam Clamp TCS 1. Particularly effective combinations are possible using other Pressix components. All 41-types except of 41/41/2.5 D can be used as guide and support channels by inserting Slide Block 41 inside the channel.

Technical Data

Material:
Cold-worked steel strip 1.0350, pre-galvanised according to DIN EN 10346

For further data, please refer to the following pages.

D = Double channel

Permissible load with centrical load application PDF | 85.1 KB Permissible load with two point loads PDF | 88.1 KB Permissible load with three point loads PDF | 82.0 KB Permissible load with distributed load PDF | 84.9 KB Slot pattern and measurements PDF | 107.5 KB

Load charts:

Channel MS 41 - Technical Data
Channel MS 41/21/1.5
Channel MS 41/21/2.0
Channel MS 41/31/2.0
Channel MS 41/41/2.0
Channel MS 41/41/2.5
Channel MS 41/45/2.5
Channel MS 41/52/2.5
Channel MS 41/62/2.5
Channel MS 41-75/65/3.0
Channel MS 41-75/75/3.0

Approvals / Conformity



This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.

* = no RAL quality label

TypeLength
[m]
Weight
[kg/m]
Qty.
[m]
Part
number
41/21/1,521,0010 173837
41/21/1,561,006 173846
41/21/2,021,3410 193686
41/21/2,031,343 193693
41/21/2,061,346 193709
41/31/2,021,5510 198872
41/31/2,061,556 198889
41/41/1,5 *61,456 195703
41/41/1,5 *31,453 116797
41/41/1,5 *21,4510 116796
41/41/2,022,0010 193723
41/41/2,032,003 193730
41/41/2,062,006 193747
41/41/2,522,3410 173909
41/41/2,532,343 173432
41/41/2,562,346 166720
41/45/2,522,4710 193754
41/45/2,562,476 193761
41/52/2,522,6710 193778
41/52/2,562,676 193785
41/62/2,563,006 193792
41-75/65/3,065,006 173990
41-75/75/3,065,346 173999

41/21/2,0 D *22,342 193808
41/21/2,0 D *62,346 193815
41/41/2,0 D *63,676 193822
41/41/2,5 D *24,702 174080
41/41/2,5 D *34,703 173441
41/41/2,5 D *64,706 166757
41/45/2,5 D *65,006 193839
41/52/2,5 D *65,346 193846
41/62/2,5 D *66,006 193853
41-75/65/3,0 D *69,346 174152
41-75/75/3,0 D *610,346 174161
