Pressix CC 41 - Assembly System

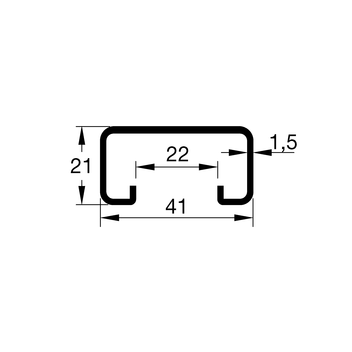

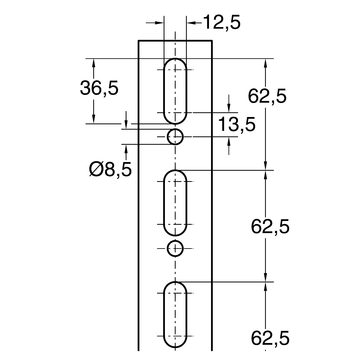

Channel MS 41/21/1.5
Permissible load with centrical load application
| L [cm] | 41/21/1,5 [N] |
|---|---|
| 20 | 2271 |
| 40 | 1134 |
| 60 | 754 |
| 80 | 564 |
| 100 | 391 |
| 120 | 268 |
| 140 | 193 |
| 160 | 144 |
| 180 | 110 |
| 200 | 86 |
| 220 | 67 |
| 240 | 53 |
| 260 | 41 |
| 280 | 31 |
| 300 | 23 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
