Pressix CC 41 - Assembly System

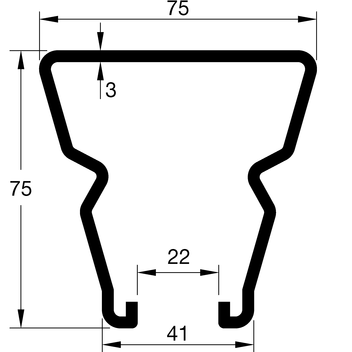

Channel MS 41-75/75/3.0
Permissible load with centrical load application

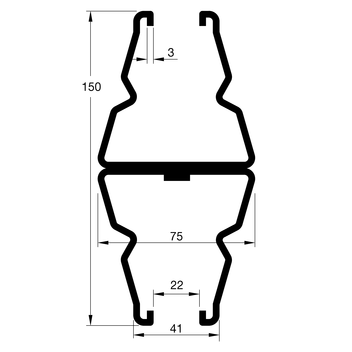

| L [cm] | 41-75/75/3.0 [N] | 41-75/75/3.0 D [N] |
|---|---|---|
| 20 | 38095 | 113507 |
| 40 | 19040 | 56738 |
| 60 | 12684 | 37809 |
| 80 | 9504 | 28339 |
| 100 | 7594 | 22653 |
| 120 | 6319 | 18859 |
| 140 | 5406 | 16146 |
| 160 | 4721 | 14109 |
| 180 | 4186 | 12522 |
| 200 | 3758 | 11250 |
| 220 | 3406 | 10208 |
| 240 | 3112 | 9338 |
| 260 | 2863 | 8600 |
| 280 | 2648 | 7966 |
| 300 | 2383 | 7416 |
| 320 | 2076 | 6933 |
| 340 | 1820 | 6505 |
| 360 | 1605 | 6124 |
| 380 | 1422 | 5782 |
| 400 | 1265 | 5473 |
| 420 | 1128 | 5193 |
| 440 | 1009 | 4937 |
| 460 | 905 | 4702 |
| 480 | 812 | 4487 |
| 500 | 729 | 4287 |
| 520 | 656 | 3958 |
| 540 | 589 | 3633 |
| 560 | 529 | 3342 |
| 580 | 474 | 3079 |
| 600 | 424 | 2840 |

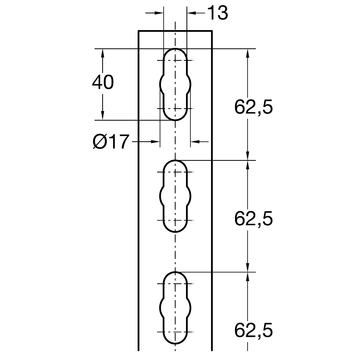

The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
