Channel MS 41

Permissible load with centrical load application

L
[cm]

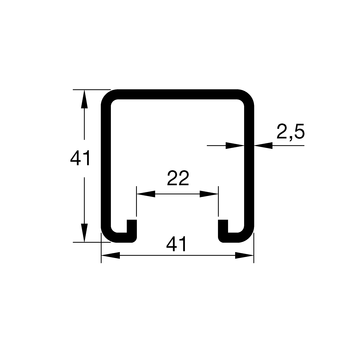

41/41/2.5
[N]

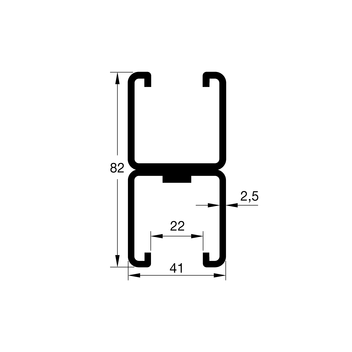

41/41/2.5 D
[N]
20 10900 33160
40 5447 16573
60 3627 11041
80 2716 8273
100 2169 6610
120 1803 5500
140 1541 4706
160 1192 4109
180 934 3643
200 749 3270
220 611 2964
240 505 2708
260 423 2491
280 356 2281
300 302 1971
320 257 1716
340 220 1504
360 188 1325
380 160 1173
400 137 1042
420 116 929
440 97 830
460 80 743
480 66 665
500 52 597
520 40 535
540 29 479
560 18 429
580 9 383
600   341

The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.

σperm ≤ 185 N/mm2
f ≤ L/200
