Application

In combination with a channel, End Support WBD is particularly suitable

  • for setting up support structures attached to walls, floors and ceilings
  • as a base for frame structures made of Sikla Channels.

The generous dimensions and the diamond shape of the mounting plate provide a high bending moment and safely stabilise lateral loads.

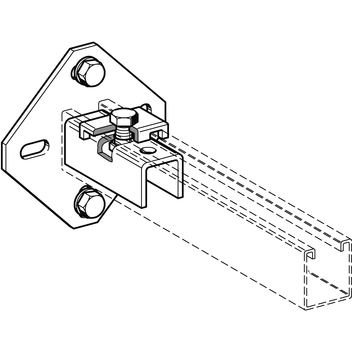

Installation

Normally, two bolts grouped opposite to each other and along the load axis are sufficient. Only in exceptional cases (e.g. tall uprights in frameworks) four bolts are required.

Minimum torque values for the hexagon bolts of the 41 Holding Brackets are:

Types
Holding Brackets
[pcs]
Bolt for Holding
Bracket
Accessories
Torque
[Nm]
41/21-31 up to 41/41-45 1 M10 pre-assembled 40
41/52 up to 41-75/75 2 M12 pre-assembled 60
41/21 D up to 41/45 D 1 M10 in loose form 40
41/52 D up to 41-75/75 D 1 M12 in loose form 60

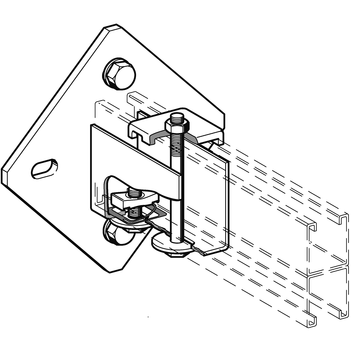

For ceiling mounting under high loads (up to 7.0 kN), we recommend the use of at least one fully traversing bolt for connecting the channel to the End Support WBD (for examples see "Installation Guideline").

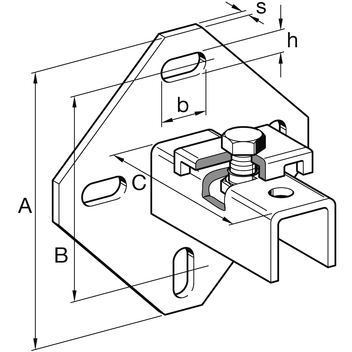

Technical Data

Type
Suitable for Sikla
Channel
A
[mm]
s
[mm]
B
[mm]
b
[mm]
h
[mm]
C
[mm]
41/21-31 41/21/1.5 - 2.0
41/31/2,0
135 6 100 25 11 95
41/41-45 41/41/2.0 - 2.5
41/45/2.5
135 6 100 25 11 95
41/52 41/52/2.5 170 6 120 25 13 131
41/62 41/62/2.5 170 6 120 25 13 131
41-75/65 41-75/65/3.0 210 8 170 25 13 131
41-75/75 41-75/75/3.0 210 8 170 25 13 131

41/21 D 41/21/1.5 - 2.0 D 135 6 100 25 11 125
41/41-45 D 41/41/2.0 - 2.5 D
41/45/2.5 D
210 8 170 25 13 125
41/52 D 41/52/2.5 D 210 8 170 25 13 135
41/62 D 41/62/2.5 D 255 8 205 25 13 135
41-75/65 D 41-75/65/3.0 D 255 8 205 25 13 135
41-75/75 D 41-75/75/3.0 D 255 8 205 25 13 135


Working load for wall mounting:
See tables on the following pages. The figures apply on wall applications if two bolts of the load class as stated are used.

Working load for ceiling mounting:
The permissible maximum vertical load for ceiling mounting structures fixed by way of at least one traversing bolt (class 8.8) amounts to 7.0 kN

For End Supports WBD for single channels, the following values apply subject to the condition that all included accessories are assembled correctly.

Types
Working load (tension)
for ceiling mounting
[kN]
41/21-31 up to 41/41-45 2.0
41/52 up to 41-75/75 4.0

Material:
Steel, cold-formed, electro-galvanised

Load charts:

End Support WBD 41/21-31
End Support WBD 41/41-45
End Support WBD 41/52
End Support WBD 41/62
End Support WBD 41-75/65
End Support WBD 41-75/75

TypeFor Sikla ChannelHolding Brackets
[number of]
W
[kg]
Quantity
[pack]
Part
number
41/21-3141/21/2,510,7310 177725
41/41-4541/41/2,5; 41/45/3,010,8310 155054
41/5241/52/3,021,445 177734
41/6241/62/3,021,505 155063
41-75/6541-75/65/3,022,155 177743
41-75/7541-75/75/3,022,195 177752
41/21 D41/21/2,5 D11,145 146469
41/41-45 D41/41/2,5 D; 41/45/3,0 D12,465 106768
41/52 D41/52/3,0 D12,865 177761
41/62 D41/62/3,0 D14,005 155090
41-75/65 D41-75/65/3,0 D14,185 177770
41-75/75 D41-75/75/3,0 D14,385 177779
