Pressix CC 41 - Assembly System

End Support WBD 41-75/65

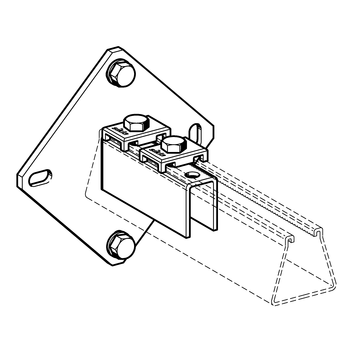

End Support WBD

Load chart applicable in combination with Channel 41-75/65/3.0

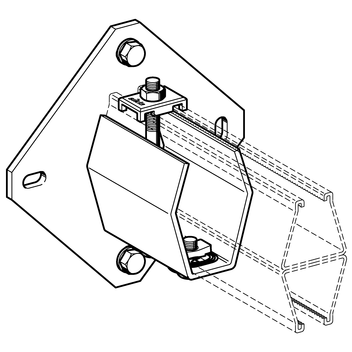

End Support WBD 41-75/65 D

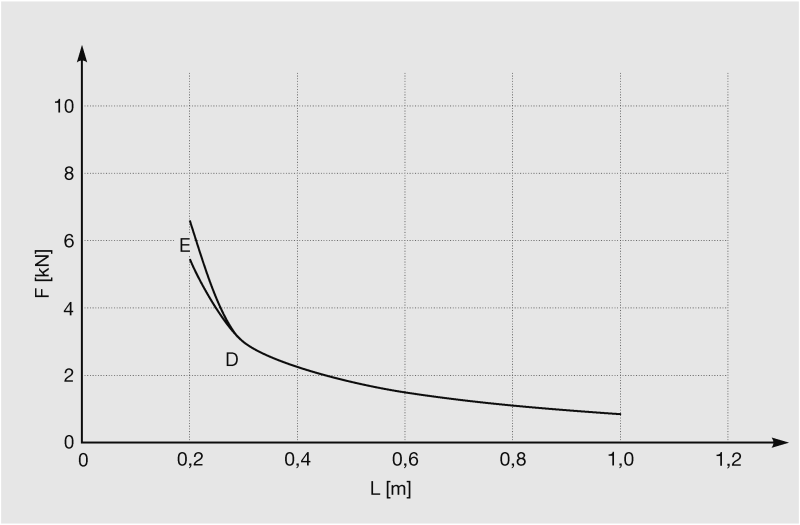

Load chart applicable in combination with Channel 41-75/65/3.0 D


Restrictions
σperm ≤ 160 N/mm2
fperm ≤ L/100 for L > 300 mm
fperm ≤ 3 mm for L = 200 ... 300 mm
Anchor load classes
A = 1.5 kN
B = 2.5 kN
C = 3.5 kN
D = 6.0 kN
E = 9.0 kN
