Pressix CC 41 - Assembly System

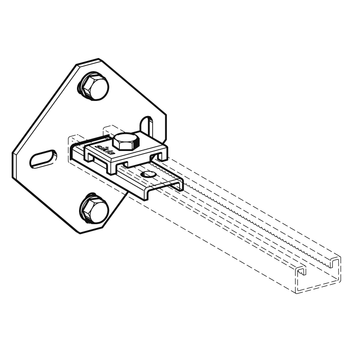

End Support WBD 41/21-31

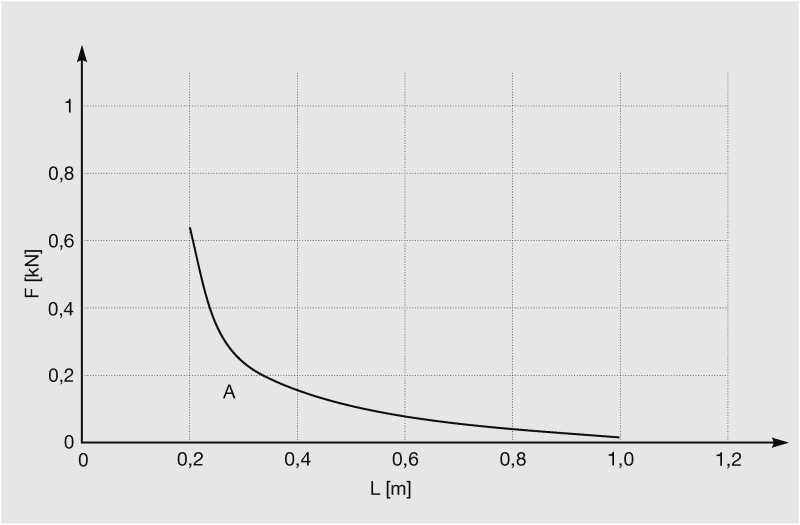

Load chart only applicable in combination with Channel 41/21/2.0 or 41/31/2.0

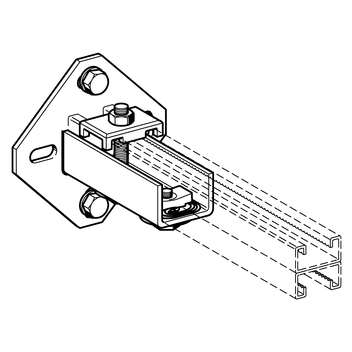

End Support WBD 41/21 D

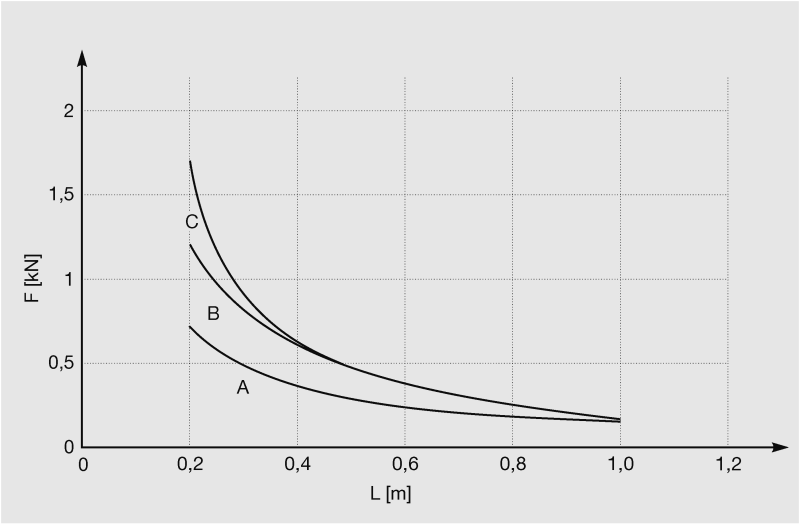

Load chart only applicable in combination with Channel 41/21/2.0 D
| Restrictions σperm ≤ 160 N/mm2 fperm ≤ L/100 for L > 300 mm fperm ≤ 3 mm for L = 200 ... 300 mm | Anchor loads A = 1.5 kN B = 2.5 kN C = 3.5 kN D = 6.0 kN E = 9.0 kN |  |
