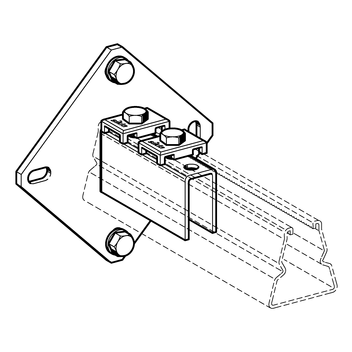

End Support WBD

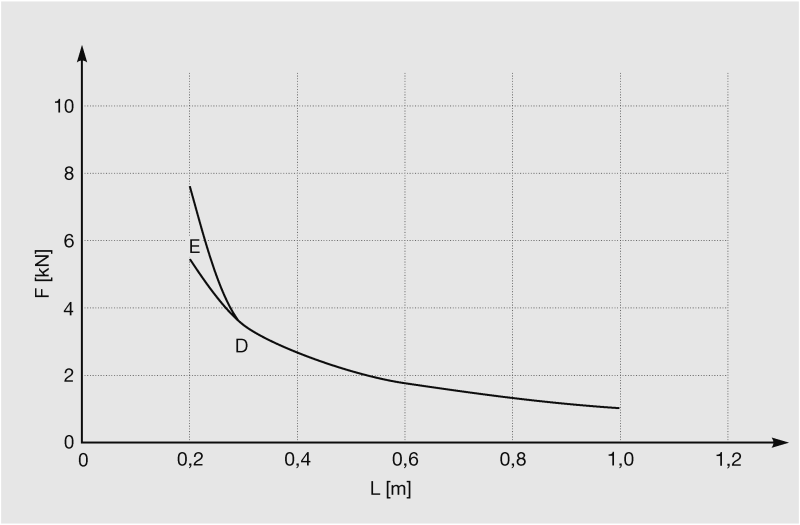

Load chart applicable in combination with Channel 41-75/75/3.0

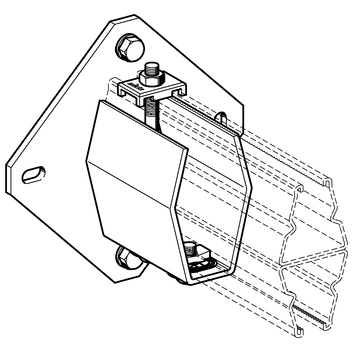

End Support WBD 41-75/75 D

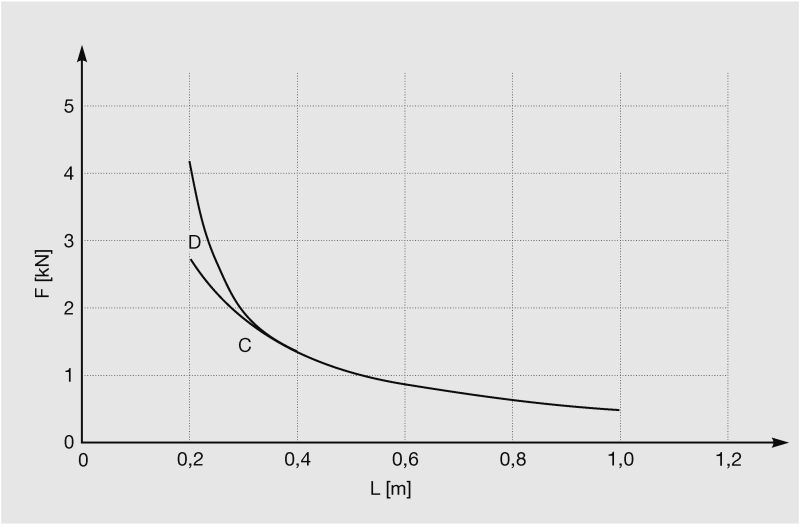

Load chart applicable in combination with Channel 41-75/75/3.0 D

Restrictions σperm ≤ 160 N/mm2 fperm ≤ L/100 for L > 300 mm fperm ≤ 3 mm for L = 200 ... 300 mm

Anchor load classes A = 1.5 kN B = 2.5 kN C = 3.5 kN D = 6.0 kN E = 9.0 kN
