Pressix CC 41 - Assembly System

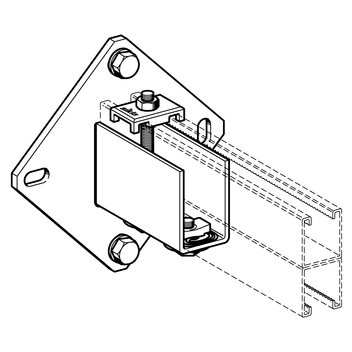

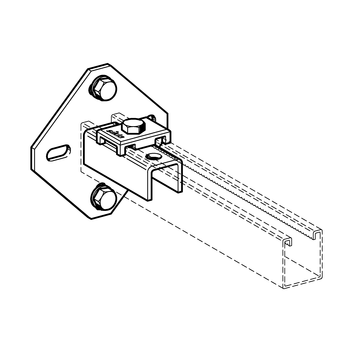

End Support WBD 41/41-45

End Support WBD

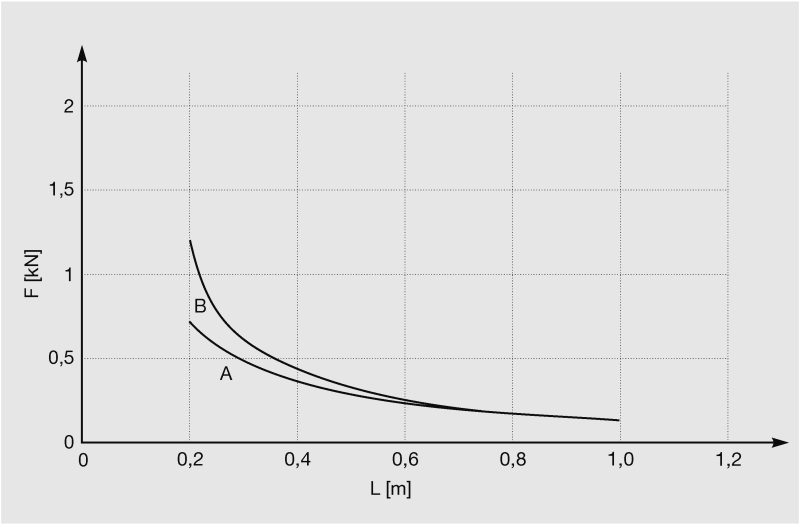

Load chart only applicable in combination with Channel 41/41/2.5 or 41/45/2.5

WBD-Halter 41/41-45 D

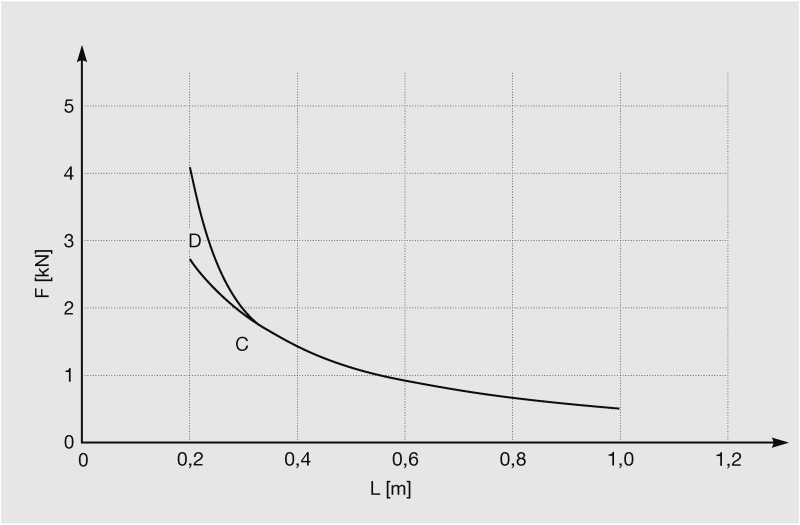

Load chart applicable in combination with Channel 41/41/2.5 D or 41/45/2.5 D


Restrictions
σperm ≤ 160 N/mm2
fperm ≤ L/100 for L > 300 mm
fperm ≤ 3 mm for L = 200 ... 300 mm
Anchor load classes
A = 1.5 kN
B = 2.5 kN
C = 3.5 kN
D = 6.0 kN
E = 9.0 kN
