Pressix CC 41 - Assembly System

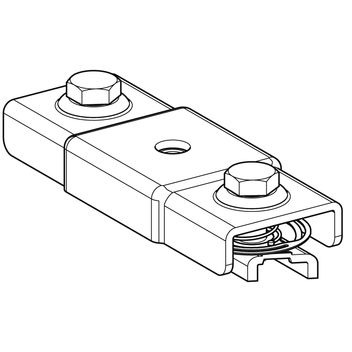

Suspension Holding Bracket IR-RA

Application

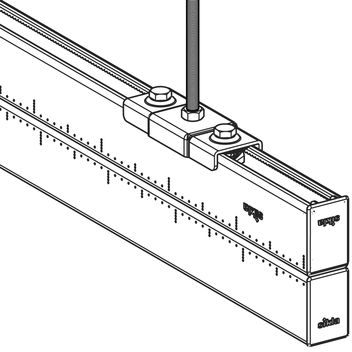

The Suspension Holding Bracket IR-RA is used to fix the ceiling grid or to fix Channels MS 41 by means of a threaded rod to the building structure. The two connecting points allow a high load transfer. The Pressix CC-components guarantee a simple and quick assembly.

Technical Data

Max. permissible load per Suspension Holding Bracket:
12 kN
Tightening torque:
15 Nm
Material:
Steel, galvanised

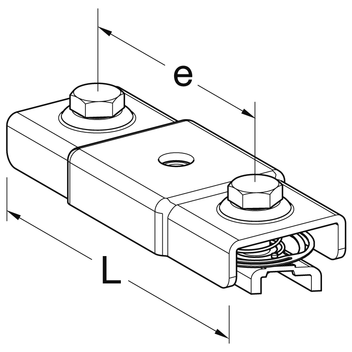

TypeL
[mm]
e
[mm]
W
[kg]
Quantity
[pack]
Part
number
IR-RA M10135960,3425 116967
