Trekstangen
Stabil Form C LK
Toepassing

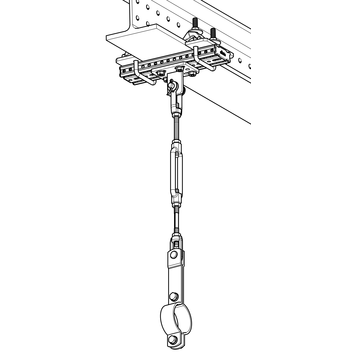

Industriële beugel volgens VGB-R 510 L voor standaardbeugels in het toepassingsgebied van industriële pijpleidingen. De beugel Stabil Form C LK kan als pendelophanging of in combinatie met een trekstang gebruikt worden.
Inhoud

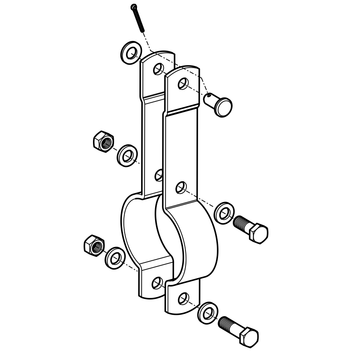

Met schroeven, moeren (hardheidsklasse 8.8 of 8) en bouten inclusief splitpen. De beugel wordt voorgemonteerd geleverd.
Technische gegevens
| Type | max. toelaatbare trekbelasting [kN] | Aanbevolen trekstangsset LKV |
|---|---|---|
| 22 - 89 | 4,0 | LKV M10 / LKV M12 |
| 115 - 169 | 5,4 | LKV M16 |
| 220 - 324 | 9,3 | LKV M16 |
De vereisten aan de uitvoering en constructie van de componenten, hun ontwerp, alsmede hun controles en belasting testen zijn uitgevoerd overeenkomstig aan de richtlijnen van VGB R 510 L deel I, KTA 3205.3 en DIN EN 13480-3.

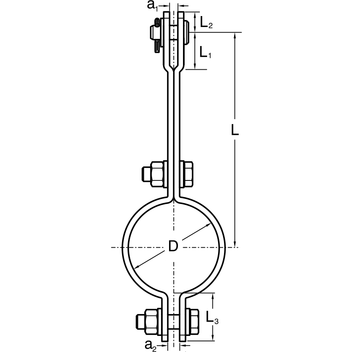

| Type | D [mm] | a1 [mm] | a2 [mm] | L [mm] | L1 [mm] | L2 [mm] | L3 [mm] | B x S [mm] |
|---|---|---|---|---|---|---|---|---|
| 22 | 22 | 7 | 10 | 90 | 29 | 12 | 33 | 30 x 5 |
| 27 | 27 | 7 | 10 | 93 | 29 | 12 | 34 | 30 x 5 |
| 34 | 34 | 7 | 10 | 107 | 29 | 12 | 35 | 30 x 5 |
| 44 | 44 | 7 | 10 | 113 | 29 | 12 | 36 | 30 x 5 |
| 49 | 49 | 7 | 10 | 126 | 29 | 12 | 36 | 30 x 5 |
| 61 | 61 | 7 | 10 | 144 | 28 | 18 | 40 | 40 x 5 |
| 77 | 77 | 7 | 10 | 183 | 28 | 18 | 41 | 40 x 5 |
| 89 | 89 | 7 | 10 | 189 | 28 | 18 | 41 | 40 x 5 |
| 115 | 115 | 11 | 16 | 221 | 38 | 23 | 41 | 50 x 6 |
| 140 | 140 | 11 | 16 | 234 | 38 | 23 | 41 | 50 x 6 |
| 169 | 169 | 11 | 16 | 249 | 38 | 23 | 41 | 50 x 6 |
| 220 | 220 | 11 | 16 | 280 | 38 | 23 | 47 | 50 x 8 |
| 273 | 273 | 11 | 16 | 311 | 38 | 23 | 56 | 60 x 8 |
| 324 | 324 | 11 | 16 | 336 | 38 | 23 | 56 | 60 x 8 |
| Materiaal: | staal, HCP |
