siFramo 80

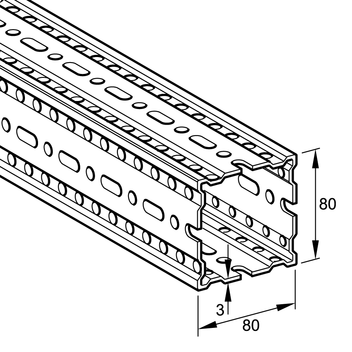

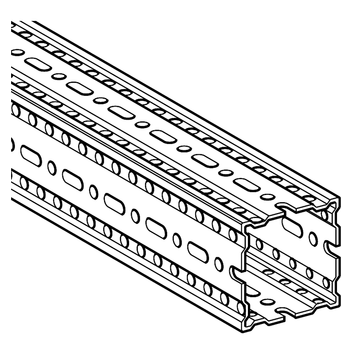

Beam Section TP F 80
Application
Galvanised hollow-box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes designed to receive Self Forming Screw FLS in conjunction with the relevant component.
Technical Data
| Type | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of inertia [cm] | Torsional moment lt [cm4 ] | Cross section A [cm2 ] |
|---|---|---|---|---|---|

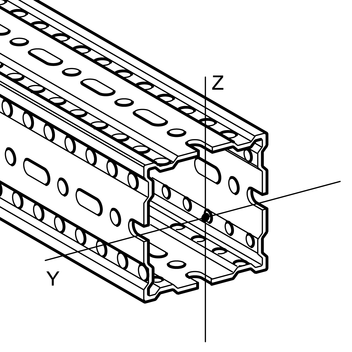

| TP F 80 | Wy: 12.95 Wz: 12,95 | ly: 62.47 lz: 62,47 | iy: 3.58 iz: 3,58 | 48.40 | 4.94 |

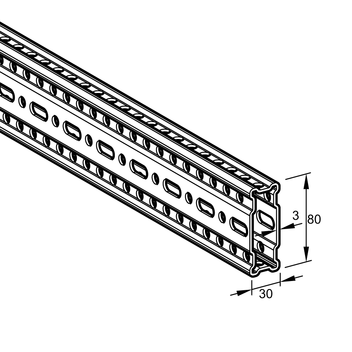

| TP F 80/30 | Wy: 7.93 Wz: 4.15 | ly: 35.40 lz: 6.74 | iy: 3.63 iz: 1.58 | 8.58 | 2.69 |
Mechanical properties shown above take into account perforations.
The specific values are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.
| Material: | Steel, hcp |
Simotec Static Guideline PDF | 8.6 MB
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
Declaration of performance Beam Section TP F PDF | 212.1 KB
