siFramo 80

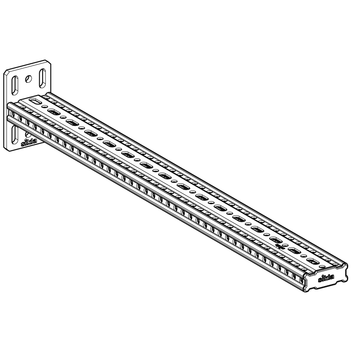

Cantilever Bracket AK F 80/30

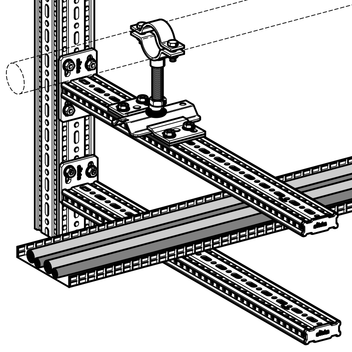

Application
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS.
Installation
With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.
Technical Data

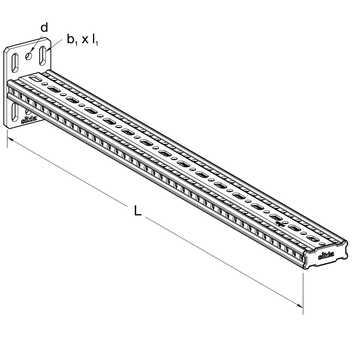

| Type | Dimensions of base plate [mm] | L [mm] | b1 x l1 [mm] | d [mm] |
|---|---|---|---|---|
| AK F 80/30-400 | 130 x 80 x 8 | 400 | 11 x 20 | 14 |
| AK F 80/30-800 | 130 x 80 x 8 | 800 | 11 x 20 | 14 |

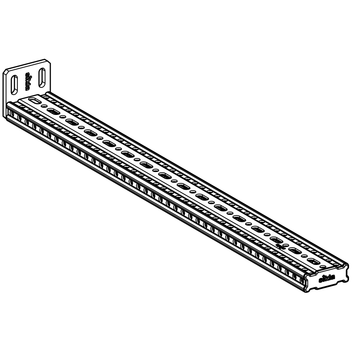

| AK F 80/30-E-400 | 80 x 80 x 8 | 400 | 11 x 20 | - |
| AK F 80/30-E-800 | 80 x 80 x 8 | 800 | 11 x 20 | - |
| Configuration: | Plate welded with Beam Section F 80/30 |
| Material: | |
| Plate: | Steel, HCP |
| Beam section: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
Declaration of performance Cantilever Bracket AK F PDF | 1.6 MB
