siFramo 100

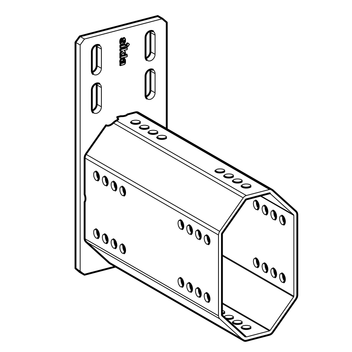

End Support STA F 100 - 100/160
Application

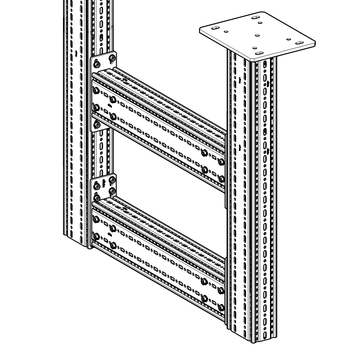

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 and TP F 100/160 or a Cantilever bracket AK F 100.
Installation
For the connection to Beam Section TP F 100 or TP F 100/160 (flange side 100) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100/160 connected to the End Support STA F 100 - 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.
Technical Data

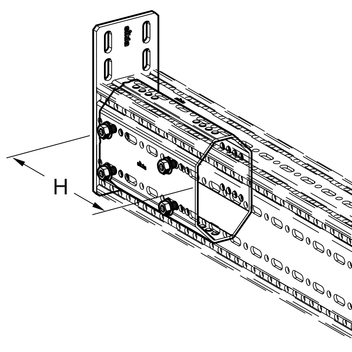

| Type | Dimensions of base plate [mm] | Slotting in base plate for | H [mm] |
|---|---|---|---|
| STA F 100 - 100/160 | 270 x 100 x 8 | M10 | 238 |
| STA F 100 - 100/160 E | 245 x 100 x 8 | M10 | 238 |
| Configuration: | Base plate welded to Octagon F 100/160 |
| Material: | |
| Plate: | Steel, HCP |
| Octagon: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance www.sikla.com/downloads)
Declaration of performance End Support STA F PDF | 189.6 KB
