siFramo 100

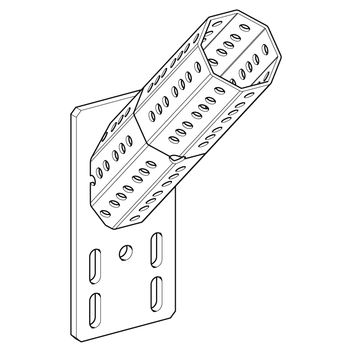

End Support STA F 100-80-E 45°
Application
The End Support STA F 100-80-E 45° is designed to generate a 45° bracing element in combination with F100 Beam Sections or F100 Cantilever Brackets.
Installation

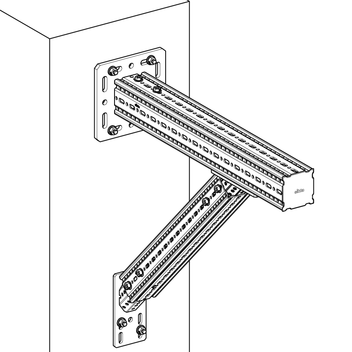

Depending on the situation on site there are two options to use this product:

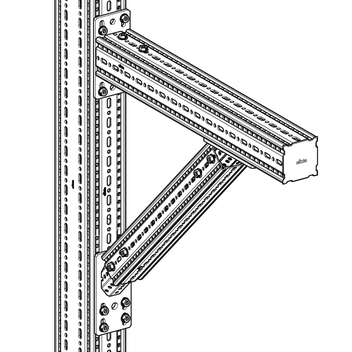

| a) | Connection within the siFramo system by connecting with 4 FLS screws to each beam section F100. |
| b) | Connection to building fabric by using 2 suitable wall anchors in diagonal configuration. |
Technical Data

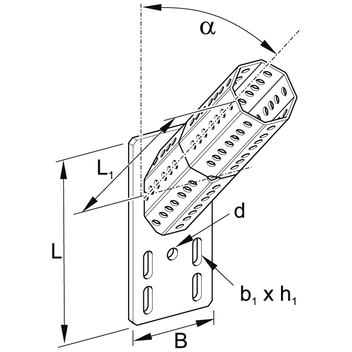

| Type | L [mm] | B [mm] | L1 [mm] | d [mm] | b1 [mm] | h1 [mm] | α [°] |
|---|---|---|---|---|---|---|---|
| STA F 100-80-E 45° | 210 | 100 | 244.5 | 14 | 11 | 20 | 45 |
| Configuration: | Base Plate welded to octagonal F 80 |
| Material: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance www.sikla.com/downloads)
ETA-24/0471
Declaration of performance End Support STA F PDF | 189.6 KB
