siFramo 100

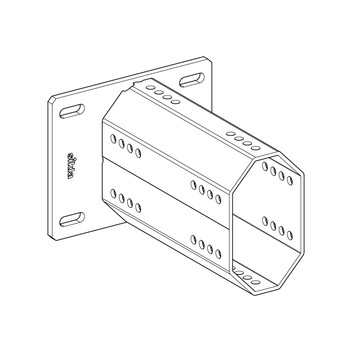

End Support STA F 160-Q

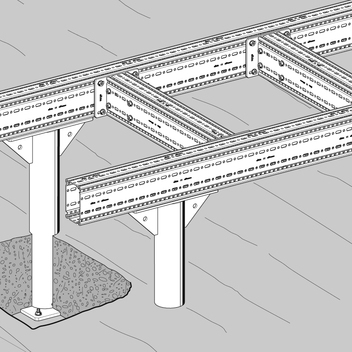

Application
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100/160.
Installation

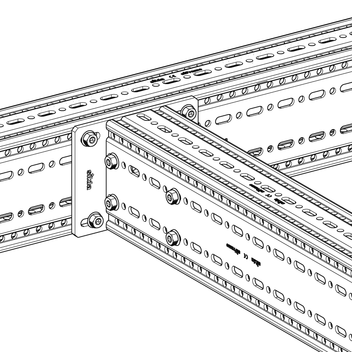

For the connection to Beam Section TP F 100/160 (flange side 160) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100/160 connected to the End Support STA F 160-Q has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary. Fixing to walls and ceilings with suitable wall anchors M10.
Technical Data

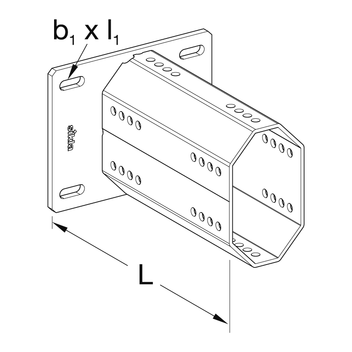

| Type | Dimensions of base plate [mm] | L [mm] | b1 x l1 [mm] |
|---|---|---|---|
| STA F 160-Q | 160 x 200 | 230 | 11 x 20 |
| Configuration: | Base plate welded to octagonal F 100/160 |
| Material: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
Declaration of performance End Support STA F PDF | 189.6 KB
