Pressix CC 41 - Assembly System

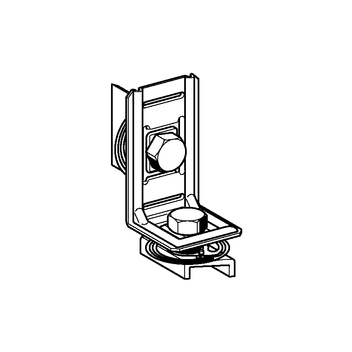

Angle Connector CN CC 41-90°

Application

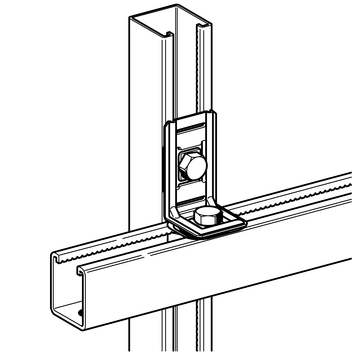

Pre-assembled connecting element especially for frame structures made of channels.

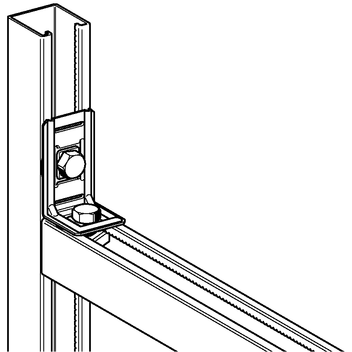

  • High-speed assembly system for 90° connection of Channels MS 41.

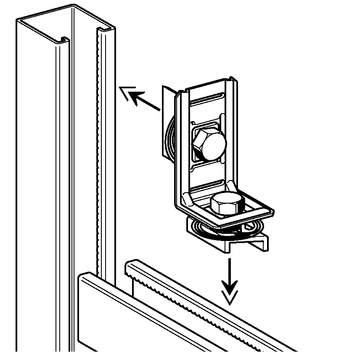

  • Locks automatically by pushing down the bolt head and at the same time supports its own weight.
  • Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping for high stiffness.

Technical Data

Working load:
F = 4.0 kN as axial load per crossbar with 2 CC Angle Connectors 90°
Torque:
40 Nm
Material:
Steel, pre-galvanised according to DIN EN 10346 / electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
CC 41-90°0,1525 180236
