Pressix CC 41 - Assembly System

Angle Connector CN CC 41 Stabil

Application

Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling.

  • High-speed assembly system for 90°- and 45°-structures of Channels MS 41.
  • Locks automatically by pushing down the bolt head and at the same time supports its own weight
  • Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.

Technical Data

Channel
thickness [mm]
FZ
[kN]
FQ
[kN]
1.5 3.0 2.3
2.0 3.5 2.3
2.5 3.5 3.5
3.0 3.5 3.5

Torque:
50 Nm
Material:
Steel, pre-galvanised

Approvals / Conformity



This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

TypeW
[kg]
Quantity
[pack]
Part
number
CC 41-90° Stabil0,2325 191675
CC 41-90° W Stabil0,1725 191684

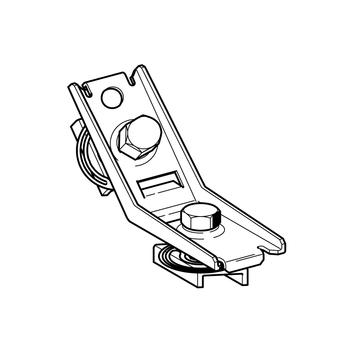

CC 41-45° Stabil0,2325 191882

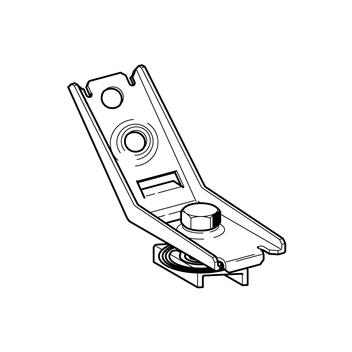

CC 41-45° W Stabil0,1725 191891
