Ring Bolt SCR

1305

Application

Connection element for suspended pipe supports.

Working load (tension):	15 kN Load figure applies to closed and welded conditions.
Material:	Steel, black, open

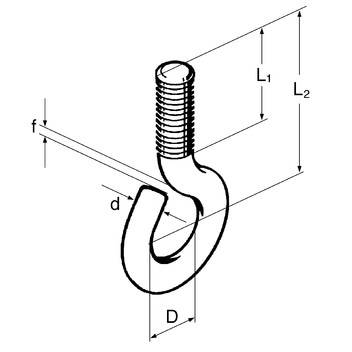

Type	D [mm]	d [mm]	L₂ [mm]	L₁ [mm]	f [mm]	W [kg]	Quantity [pack]	Part number
M12 x 40	30	10	75	40	10	0,15	50	152981
M16 x 40	30	14	79	40	10	0,24	25	152972
