Application

For particularly high static requirements in plant construction. Design similar to DIN 3567. The perforations on both sides allow the application of standardised bolts and threaded rods out of the Sikla product range.

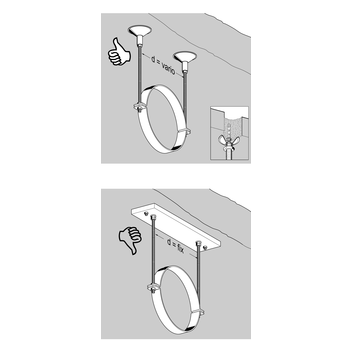

If fixed on both sides by threaded rods M12 or M16 or threaded tubes, we recommend the application of the Support Cone SMD 1. In addition to be applied for the design of Fixed Points or Sliding Supports by welding to T-Sections.

Scope of delivery

Two-piece pipe clamp delivered without bolts.
For suitable bolts, please see chapter "Fixings and Fastenings".

Technical Data

Admissible load valid with fixation on both sides

Size range
[mm]
max. adm. load (tension)
[kN]
Tightening torque
[Nm]
14 - 49 11.0 20
57 - 89 15.5 40
96 - 163 22.0 40
164 - 273 42.0 40
317 - 610 42.0 100

The max. permissible load capacity of the connected parts (e.g. anchors) shall be considered.

The max. adm. load capacity is determined by the application of statistical methods resulting from the breaking loads, under observance of a max. adm. deformation of 1.5 mm resp. 2% of the max. stretchable pipe dia.

Material:
Steel, surface black

Overview "All clamping ranges" PDF | 233.8 KB

Further clamping ranges listed in the attached Pdf-Overview.

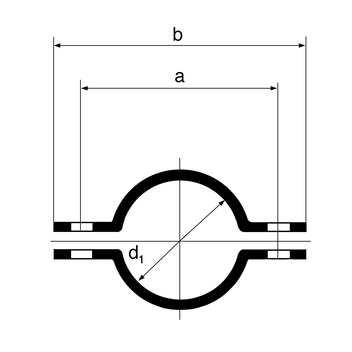

Size d1
[mm]
Size range
[mm]
Material
W x th
[mm]
Recommended
clamping bolts
a
[mm]
b
[mm]
W
[kg]
Quantity
[pack]
Part
number
1814 - 1830 x 5,0M10 x 4052800,1725 110309
2218 - 2230 x 5,0M10 x 4058860,1925 110310
2723 - 2730 x 5,0M10 x 4065930,2125 110312
3430 - 3430 x 5,0M10 x 40741020,2425 110403
3935 - 3930 x 5,0M10 x 40801080,2625 110314
4440 - 4430 x 5,0M10 x 40861140,2825 110404
4945 - 4930 x 5,0M10 x 40911190,3025 110316
6157 - 6140 x 5,0M12 x 451031360,4625 110319
7167 - 7140 x 5,0M12 x 451141470,5125 110320
7772 - 7740 x 5,0M12 x 451191520,5425 110321
8984 - 8940 x 5,0M12 x 451321650,6025 110322
10296 - 10250 x 5,0M12 x 451451780,8210 110323
109102 - 10950 x 5,0M12 x 451521850,8610 110324
115109 - 11550 x 5,0M12 x 501591920,9010 110325
134128 - 13450 x 5,0M12 x 501782111,0210 110327
140134 - 14050 x 5,0M12 x 501842171,0510 110328
163157 - 16350 x 5,0M12 x 502082411,2010 111733
169163 - 16950 x 8,0M12 x 552222552,0010 110330
194188 - 19450 x 8,0M12 x 552482812,251 110332
221215 - 22150 x 8,0M12 x 552753082,521 110335
254246 - 25450 x 8,0M12 x 553083412,831 110336
266259 - 26650 x 8,0M12 x 553213542,951 110337
273266 - 27350 x 8,0M12 x 553283613,021 110338
324317 - 32460 x 8,0M16 x 603854254,291 110341
356349 - 35660 x 8,0M16 x 804174574,671 110342
374366 - 37460 x 8,0M16 x 604354754,881 110343
407397 - 40770 x 8,0M16 x 654685086,111 110344
429419 - 42970 x 8,0M16 x 654905306,411 110345
457447 - 45770 x 8,0M16 x 655185586,791 110346
508498 - 50870 x 8,0M16 x 655696097,501 110347
530520 - 53070 x 8,0M16 x 655916317,801 110348
541531 - 54170 x 8,0M16 x 656036437,961 110442
610600 - 61070 x 8,0M16 x 656727128,911 110443
