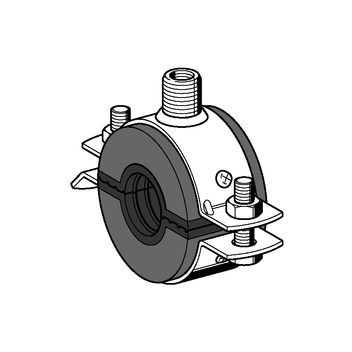

Chilled Water Clamp SKS Top-2C

Application

Used for cold-water pipeline systems and refrigeration installations. Fixation of pipe lines degenerated from sound and vibration.
First class sound absorption by means of soft foam.
One size covers several pipe dimensions.
Permissible pipe dia. tolerances are securely adjusted by the elastomer part which also prevents from condensation which may occur due to slots.
No sealant is needed - the smooth adhesion of the pipe insulation at the front surface is possible.
Suitable also for heavy loads.

Scope of delivery

The insulation insert is firmly integrated in the Stabil Clamp. With inserted and welded 3G triple thread nut, up to size 70 - 75 with joint.
Retaining and clamping bolts are inserted on both sides of the lower part and cannot fall out due to a plastic washer. The nuts for the retaining bolts are welded to the other clamp part up to size 168 - 172.

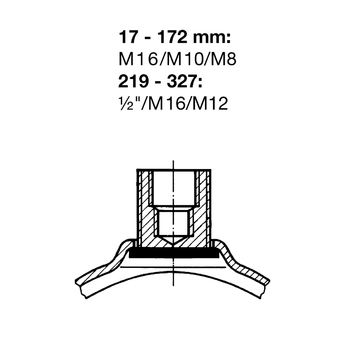

Multifaceted connection options via the external thread of the 3G triple thread nut with Adapter AD f/f.

Technical Data

Material:
free from halogens
Insulating component:
Polyurethane (PUR) foam sp.gr. 250 kg/m3
Pipe clamp:
Steel, galvanised

Compression strength:
0.7 N/mm2 (for static loads)
Diffusion resistance:
The closed-cell structure of the PUR serves as a durable barrier, which develops through the total thickness of the insulation
Thermal conductivity:
λ = 0.042 W/mK at 10°C
λ = 0.043 W/mK at 20°C
λ = 0.044 W/mK at 30°C
λ = 0.045 W/mK at 40°C
Temperature range:
From -50°C up to +110°C, short-term excess temperature permissible
Insulation insert:
Up to 25.3 dB(A)
Up to 26.3 dB(A)
for system testing
Fire resistance:
EL (DIN EN 13501-1)
TypeNBIns. insert

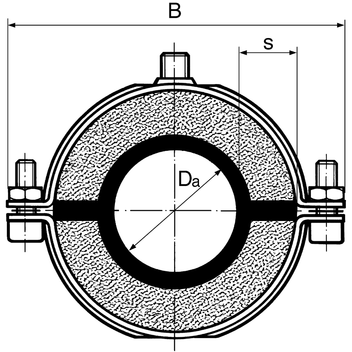

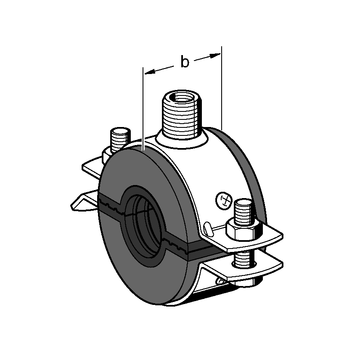

b x s [mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
17 - 223/8" - 1/2"40 x 201040,2050 191207
23 - 2640 x 201110,2050 194980
27 - 323/4" 40 x 201110,2050 191216
33 - 381" 40 x 201170,2050 191225
38 - 4240 x 201690,4325 194997
42 - 471 1/4" 40 x 301690,4525 191234
48 - 541 1/2" 40 x 301690,4525 191243
57 - 622" 50 x 301900,5525 191252
63 - 6850 x 301900,5525 195000
70 - 7550 x 301900,5525 191261
76 - 812 1/2" 50 x 302070,9025 191279
89 - 943" 50 x 302221,0025 191288
107 - 11260 x 402631,3010 191297
113 - 1174"60 x 402731,4310 191306
125 - 12860 x 403011,4510 195048
133 - 13760 x 402951,4910 191315
138 - 1425"60 x 402951,5310 191324
157 - 16160 x 403291,6510 191333
168 - 1726"60 x 403291,7010 191342
219 - 2228"100 x 604283,931 191351
272 - 27510"100 x 604814,481 191369
324 - 327100 x 605345,181 191378
