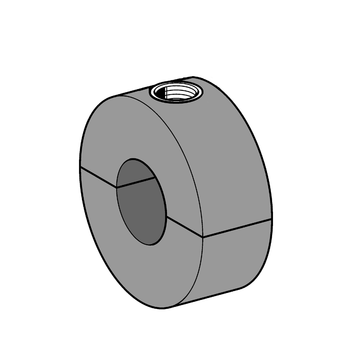

Chilled Water Clamp RB

Application

Insulated pipe clamp made of PUR-foam for chiller plants and cool water systems.

Scope of delivery

Two-piece polyurethane-integral foam with steel holders with inside connection ears (laid in foam).

Installation

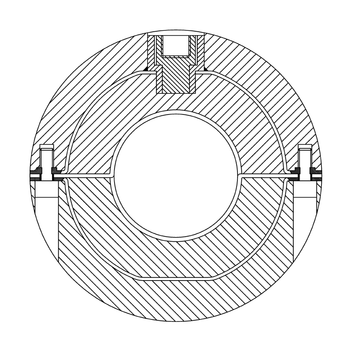

Screw in upper part and position the pipe.
Tighten closely lower part with displaced caoutchouc part to upper part (PUR part to caoutchouc, caoutchouc part to PUR).

Advantage: Sealant is not longer required!

Technical Data

Insulation core:
PUR-foam (250 kg/m3 , B2)
Pressure resistance:
For static load: 4,3 N/mm2 at 23° C
Diffusion resistance:
µ = 1200
λ = 0.045 W/mK at 0° C
Fire resistance:
EL (DIN EN 13501-1)
Temperature range:
From - 50° C up to + 105° C
Insertion loss:
Up to 16 dB(A)

Type
Max. load
[kN]
15/30 0.27
17/30 0.27
18/30 0.28
21/30 0.33
22/30 0.34
27/30 0.42
28/30 0.44
33/30 0.53
35/30 0.55
42/30 0.66
48/30 0.75
54/30 0.87
57/30 0.89
60/30 1.20
76/30 1.48
89/30 1.73
114/40 2.67
133/40 3.11
139/40 3.27
159/40 3.72
168/40 4.40
204/60 5.20
219/60 5.26
