Pipe Clamps and Accessories

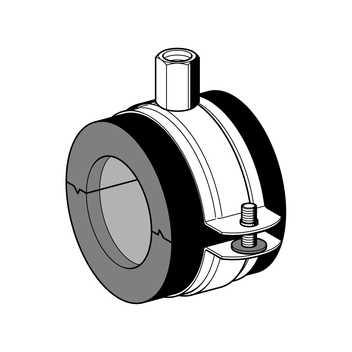

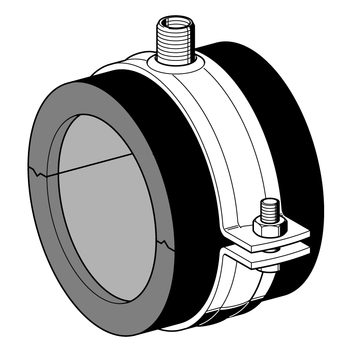

Chilled Water Clamp LKS 32

Application

Suitable for secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines.

An optimal diffusion-tight connection with the pipe insulation is easily and safely achieved by fixing usual insulation materials to the clamp faces using adhesive. Recommended up to -0°C at normal ambient condition.

Scope of delivery

Consisting of pipe clamp and insulation insert. The one-piece insulation insert comprising two joined PUR elements forms a comprehensive connection between PUR element and pipe clamp all around the pipe.
The outer edges of the PUR elements are equipped with elastomer foam and coated by a black aluminium foil.

Type
Nominal thickness
of the insulation [mm]
Size
Length of PUR-element
b [mm]
LKS 32

32

15 - 70
76 - 273
50
100

Technical Data

Up to type LKS 32-168 the unsupported lengths as listed in DIN 1988 may be applied.

The regulations of DIN 4140 have to be respected (an existing gap has to be sealed with sealant). Sealant DP 30/45 see Chapter "Fixed Point Packages".

Clamp material:
Steel, electro-galvanised
Insulation insert:
Free of halogens
PUR-core:
Specific gravity 80 or 120 kg/m3
Thermal conductivity:
λ = 0.024 - 0.026 W/(mK) at 0°C
λ = 0.038 W/(mK) at 10°C
λ = 0.040 W/(mK) at 40°C
Steam diffusion resistance factor:
µ ≥ 7000
Fire resistance:
EL (DIN EN 13501-1)
Temperature range:
-40°C up to +105°C
Insulation insert:
Up to 18 dB(A)
Storage temperature:
≥ 10°C
Storage period:
1 year
TypePipe ø
D [mm]
B
[mm]
Insulation
thickness
S [mm]
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
LKS 32-1515,012531M8/M100,1724 114772
LKS 32-1818,012531M8/M100,1724 114774
LKS 32-2222,013431M8/M100,1824 114776
LKS 32-2525,013431M8/M100,1824 114777
LKS 32-2828,014131M8/M100,1924 114780
LKS 32-3030,0146,534M8/M100,2018 114781
LKS 32-3535,015134M8/M100,2118 114783
LKS 32-3838,0159,536M8/M100,2218 114784
LKS 32-4242,0159,536M8/M100,2318 114786
LKS 32-4444,517337M8/M100,2818 114788
LKS 32-4848,317337M8/M100,2918 114789
LKS 32-5454,018638M8/M100,3112 114791
LKS 32-5757,018638M8/M100,3112 114792
LKS 32-6060,318638M8/M100,3112 114793
LKS 32-6464,019339M8/M100,3310 114794
LKS 32-7070,020339M8/M100,3510 114795
LKS 32-7676,121542M8/M100,508 114797
LKS 32-8080,021542M8/M100,508 114798
LKS 32-8988,922942M8/M100,546 114799
LKS 32-108108,026542M12/M16/1/2"1,256 114801
LKS 32-114114,027643M12/M16/1/2"1,316 114804
LKS 32-133133,029644M12/M16/1/2"1,446 114806
LKS 32-139139,729643M12/M16/1/2"1,456 114807
LKS 32-160159,032145M12/M16/1/2"1,584 114808
LKS 32-168168,333245M12/M16/1/2"1,734 114809
LKS 32-219219,038746M12/M16/1/2"1,932 114813
LKS 32-273273,048245M163,532 114816
