Pipe Clamps and Accessories

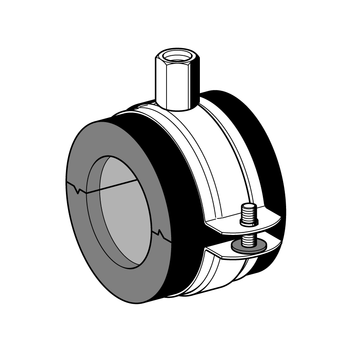

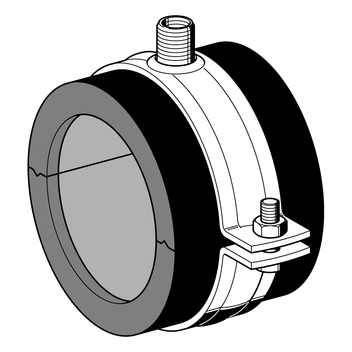

Chilled Water Clamp LKS 19

Application

Suitable for secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines. An optimal diffusion-tight connection with the pipe insulation is easily and safely achieved by fixing usual insulation materials to the clamp faces using adhesive. Recommended up to -0°C at normal ambient condition.

Scope of delivery

Consisting of pipe clamp and insulation insert. The one-piece insulation insert comprising two joined PUR elements forms a comprehensive connection between PUR element and pipe clamp all around the pipe.
The outer edges of the PUR elements are equipped with elastomer foam and coated by a black aluminium foil.

Type
Nominal thickness of
the insulation [mm]
Size
Length of PUR element
b [mm]
LKS 19
19
15 - 89
102 - 273
50
100

Technical Data

The unsupported lengths as listed in DIN 1988 may be applied for types LKS 13 and LKS M 19 to 168.

The regulations of DIN 4140 have to be respected (an existing gap has to be sealed with sealant). Sealant DP 30/45 see Chapter "Fixed Point Packages".

Clamp material:
Steel, electro-galvanised
Insulation insert:
Free of halogens
PUR core:
Specific gravity 80 or 120 kg/m3
Thermal conductivity:
λ = 0.024 - 0.026 W/(mK) at 0°C
λ = 0.038 W/(mK) at 10°C
λ = 0.040 W/(mK) at 40°C
Steam diffusion resistance factor:
µ ≥ 7000
Fire resistance:
EL (DIN EN 13501-1)
Temperature range:
-40°C up to +105°C
Insulation insert:
Up to 18 dB(A)
Storage temperature:
≥ 10°C
Storage period:
1 year

* = Delivery time: 10 workdays

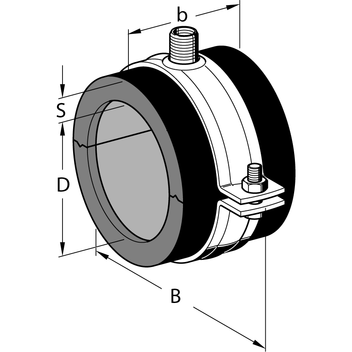

TypePipe ø
D [mm]
B
[mm]
Insulation
thickness
S [mm]
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
LKS 19-1515,091,519,0M8/M100,0842 114730
LKS 19-16 *16,091,519,0M8/M100,0942 114731
LKS 19-1818,099,019,5M8/M100,0942 114733
LKS 19-20 *20,099,019,5M8/M100,1042 114734
LKS 19-2222,0105,019,5M8/M100,1042 114735
LKS 19-2525,0105,019,5M8/M100,0942 114736
LKS 19-26 *26,0105,019,5M8/M100,0942 114737
LKS 19-2828,0112,020,0M8/M100,1036 114738
LKS 19-3030,0112,020,0M8/M100,1036 114739
LKS 19-32 *32,0112,020,0M8/M100,1136 114740
LKS 19-3535,0125,020,0M8/M100,1724 114741
LKS 19-3838,0125,021,5M8/M100,1724 114742
LKS 19-40 *40,0134,021,5M8/M100,1824 114743
LKS 19-4242,0134,021,5M8/M100,1824 114744
LKS 19-4444,5134,021,5M8/M100,2024 114745
LKS 19-4848,3141,021,5M8/M100,2018 114746
LKS 19-50 *50,0146,521,5M8/M100,2018 114747
LKS 19-5454,0146,521,5M8/M100,2018 114748
LKS 19-5757,0146,522,0M8/M100,2218 114749
LKS 19-6060,3151,022,0M8/M100,2218 114751
LKS 19-6464,0151,022,0M8/M100,2218 114752
LKS 19-7070,0159,522,0M8/M100,2418 114753
LKS 19-7676,1173,022,0M8/M100,3018 114754
LKS 19-8080,0173,022,0M8/M100,3018 114755
LKS 19-8988,9186,022,0M8/M100,3010 114756
LKS 19-102101,6203,022,5M8/M100,3910 114757
LKS 19-108108,0203,022,5M8/M100,4010 114758
LKS 19-110110,0203,022,5M8/M100,4010 114759
LKS 19-114114,3215,022,5M8/M100,418 114760
LKS 19-125 *125,0229,023,0M8/M100,456 114761
LKS 19-133133,0229,023,0M8/M100,476 114762
LKS 19-139139,7265,023,0M12/M16/1/2"1,196 114763
LKS 19-160159,0276,023,0M12/M16/1/2"1,276 114764
LKS 19-168168,3287,023,0M12/M16/1/2"1,296 114765
LKS 19-180180,0307,025,0M12/M16/1/2"1,356 114766
LKS 19-200200,0321,025,0M12/M16/1/2"1,446 114767
LKS 19-219219,0344,023,0M12/M16/1/2"1,626 114768
LKS 19-225225,0355,025,0M12/M16/1/2"1,646 114769
LKS 19-250250,0374,025,0M12/M16/1/2"1,692 114770
LKS 19-273273,0440,023,0M162,772 114771
