Application

For pipeline systems in industrial and residential buildings and sprinkler installations meeting the VdS standards.
For horizontal and vertical pipelines, the U-Bolts are applied as Fixed Points and as Guiding Supports.

Scope of delivery

Similar to the DIN 3570 standard.
Four hexagon nuts and four washers included in loose form.

Installation

When used as Guided Support, nuts have to be arranged and fixed on both sides, at the top and at the bottom of the profile. Thereby the pipe should remain flexible. When used as Fixed Point the admissible loads of the connecting elements shouldn't exceed the bending loads of the U-bolt.

Technical Data

Material:
Steel, electro-galvanised

Approvals / Conformity

The U Bolt NB 8" with M12 thread obtained a separate VdS Approval (No. G4810047).

U-Bolt - G4810047 VdS PDF | 1.1 MB

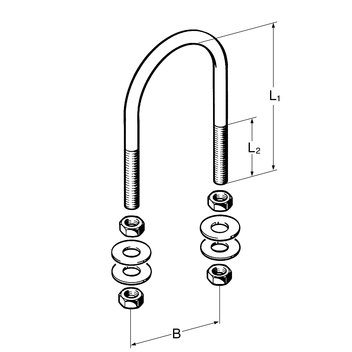

TypeNBB
[mm]
L1
[mm]
L2
[mm]
ThreadW
[kg]
Quantity
[pack]
Part
number
21,31/2" 30 4530M80,0850 102162
26,93/4" 35 6040M80,0950 102773
33,71" 42 6740M80,0950 102782
42,41 1/4" 51 7640M80,1050 102791
48,31 1/2" 57 8240M80,1150 102807
60,32" 71 9545M100,21 50 102816
76,12 1/2" 8711145M100,23 50 102825
88,93"10012345M100,24 50 102834
114,34"12615755M120,3925 102171
10812115155M120,38 50 102843
139,75"15218055M120,43 25 102180
13314617255M120,42 25 102852
15917219755M120,46 25 102861
168,36"18020755M120,4610 102199
219,18"23326755M120,56 10 102870
