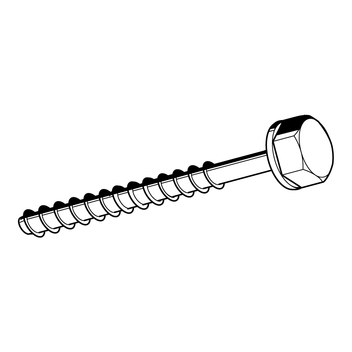

Screwbolt TSM-S
Application
Suitable for quick and safe fixation of Sikla Channels to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements.
- Easy installation via self-cutting action of screwbolt threads into concrete
- Small edge and axial distances to adjacent fixings, due to low expansion pressure when installed
- No plug necessary
- Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline)
- Flexible use for high or standard load performances due to 3 anchoring depths
- Approved for the application under seismic impact of category C1 (ø 8 - 14) for anchoring depth hnom3
- For single fixings it is possible to additionally seal the drill hole with a special injecton resin against water ingress, prior to the fixing being installed and before the injection resin sets
Installation
Screw in the bolt screw in pre-drilled pilot hole. The special thread guarantees a mechanical form lock with the base material. Fine adjustment of depth is possible if the TSM-IM screw is initially installed too deep.
Technical Data
Single fixing:
Extract from application conditions of ETA-16/0655
Admissible loads not affected by centre and edge distances.
Total safety factor respected according ETAG 001 ( YM YF ).
Diameter 6 mm
Anchoring depth 40 mm | Anchoring depth 55 mm | |
---|---|---|
Drive | SW13 | SW13 |
Nominal diameter of drill d0 [mm] | 6 | 6 |
Depth of bore hole h1 [mm] | 45 | 60 |
Perm. tensile load cracked conrete | ||
C20/25 [kN] | 1.0 | 1.9 |
C25/30 [kN] | 1.0 | 2.1 |
C30/37 [kN] | 1.2 | 2.3 |
C40/50 [kN] | 1.3 | 2.7 |
C50/60 [kN] | 1.5 | 3.0 |
Perm. tensile load non-cracked concrete | ||
C20/25 [kN] | 1.9 | 4.3 |
C25/30 [kN] | 2.1 | 4.7 |
C30/37 [kN] | 2.3 | 5.2 |
C40/50 [kN] | 2.7 | 6.1 |
C50/60 [kN] | 3.0 | 6.6 |
Min. thickness of component hmin [mm] | 100 | 100 |
Charact. centre distance scr,N | 93 | 132 |
Charact. edge distance ccr,N | 46,5 | 66 |
Min. centre distance smin [mm] | 40 | 40 |
Min. edge distance cmin [mm] | 40 | 40 |
Clearance hole in component ≤ [mm] | 8 | 8 |
Perm. bending moment Mzul [Nm] | 5.7 | 5.7 |
Recommended max. torque Tinst [Nm] | 10 | 10 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
Anchoring depth 40 mm | Anchoring depth 55 mm | |
---|---|---|
Perm. tensile load R30 perm. F [kN] | 0.5 | 0.9 |
Perm. tensile load R60 perm. F [kN] | 0.5 | 0.8 |
Perm. tensile load R90 perm. F [kN] | 0.5 | 0.6 |
Perm. tensile load R120 perm. F [kN] | 0.4 | 0.4 |
Charact. centre distance scr,fi | 124 | 176 |
Charact. edge distance ccr,fi | 62 | 88 |
Diameter 8 mm
Anchoring depth hnom1 45 mm | Anchoring depth hnom2 55 mm | Anchoring depth hnom3 65 mm | |
---|---|---|---|
Drive | SW13 | SW13 | SW13 |
Nominal diameter of drill d0 [mm] | 8 | 8 | 8 |
Depth of bore hole h1 [mm] | 55 | 65 | 75 |
Perm. tensile load cracked conrete | |||
C20/25 [kN] | 2.4 | 4.3 | 5.7 |
C25/30 [kN] | 2.6 | 4.7 | 6.3 |
C30/37 [kN] | 2.9 | 5.2 | 7.0 |
C40/50 [kN] | 3.4 | 6.1 | 8.1 |
C50/60 [kN] | 3.7 | 6.6 | 8.9 |
Perm. tensile load non-cracked concrete | |||
C20/25 [kN] | 3.6 | 5.7 | 7.6 |
C25/30 [kN] | 3.9 | 6.3 | 8.3 |
C30/37 [kN] | 4.3 | 7.0 | 9.3 |
C40/50 [kN] | 5.1 | 8.1 | 10.8 |
C50/60 [kN] | 5.5 | 8.9 | 11.8 |
Min. thickness of component hmin [mm] | 100 | 100 | 120 |
Charact. centre distance scr,N | 105 | 129 | 156 |
Charact. edge distance ccr,N | 52.5 | 64.5 | 78 |
Min. centre distance smin [mm] | 40 | 50 | 50 |
Min. edge distance cmin [mm] | 40 | 50 | 50 |
Clearance hole in component ≤ [mm] | 12 | 12 | 12 |
Perm. bending moment Mzul [Nm] | 14.9 | 14.9 | 14.9 |
Recommended max. torque Tinst [Nm] | 20 | 20 | 20 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
Anchoring depth hnom1 45 mm | Anchoring depth hnom2 55 mm | Anchoring depth hnom3 65 mm | |
---|---|---|---|
Perm. tensile load R30 perm. F [kN] | 1.3 | 2.2 | 2.4 |
Perm. tensile load R60 perm. F [kN] | 1.3 | 1.7 | 1.7 |
Perm. tensile load R90 perm. F [kN] | 1.1 | 1.1 | 1.1 |
Perm. tensile load R120 perm. F [kN] | 0.7 | 0.7 | 0.7 |
Charact. centre distance scr,fi | 140 | 172 | 208 |
Charact. edge distance ccr,fi | 70 | 86 | 104 |
Diameter 10 mm
Anchoring depth hnom1 55 mm | Anchoring depth hnom2 75 mm | Anchoring depth hnom3 85 mm | |
---|---|---|---|
Drive | SW15 | SW15 | SW15 |
Nominal diameter of drill d0 [mm] | 10 | 10 | 10 |
Depth of bore hole h1 [mm] | 65 | 85 | 95 |
Perm. tensile load cracked conrete | |||
C20/25 [kN] | 4.3 | 8.0 | 9.6 |
C25/30 [kN] | 4.7 | 8.7 | 10.5 |
C30/37 [kN] | 5.2 | 9.7 | 11.7 |
C40/50 [kN] | 6.1 | 11.3 | 13.6 |
C50/60 [kN] | 6.6 | 12.3 | 14.9 |
Perm. tensile load non-cracked concrete | |||
C20/25 [kN] | 5.7 | 9.5 | 11.9 |
C25/30 [kN] | 6.3 | 10.4 | 13.0 |
C30/37 [kN] | 7.0 | 11.6 | 14.5 |
C40/50 [kN] | 8.1 | 13.5 | 16.8 |
C50/60 [kN] | 8.9 | 14.8 | 18.4 |
Min. thickness of component hmin [mm] | 100 | 130 | 130 |
Charact. centre distance scr,N | 129 | 180 | 204 |
Charact. edge distance ccr,N | 64.5 | 90 | 102 |
Min. centre distance smin [mm] | 50 | 50 | 50 |
Min. edge distance cmin [mm] | 50 | 50 | 50 |
Clearance hole in component ≤ [mm] | 14 | 14 | 14 |
Perm. bending moment Mzul [Nm] | 32 | 32 | 32 |
Recommended max. torque Tinst [Nm] | 40 | 40 | 40 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
Anchoring depth hnom1 55 mm | Anchoring depth hnom2 75 mm | Anchorind depth hnom3 85 mm | |
---|---|---|---|
Perm. tensile load R30 perm. F [kN] | 2.2 | 4.2 | 4.4 |
Perm. tensile load R60 perm. F [kN] | 2.2 | 3.3 | 3.3 |
Perm. tensile load R90 perm. F [kN] | 2.2 | 2.2 | 2.2 |
Perm. tensile load R120 perm. F [kN] | 1.7 | 1.7 | 1.7 |
Charact. centre distance scr,fi | 172 | 240 | 272 |
Charact. edge distance ccr,fi | 86 | 120 | 136 |
Diameter 12 mm
Anchoring depth hnom1 65 mm | Anchoring depth hnom2 85 mm | Anchoring depth hnom3 100 mm | |
---|---|---|---|
Drive | SW17 | SW17 | SW17 |
Nominal diameter of drill d0 [mm] | 12 | 12 | 12 |
Depth of bore hole h1 [mm] | 75 | 95 | 110 |
Perm. tensile load cracked conrete | |||
C20/25 [kN] | 5.7 | 9.4 | 12.3 |
C25/30 [kN] | 6.3 | 10.3 | 13.4 |
C30/37 [kN] | 7.0 | 11.4 | 14.9 |
C40/50 [kN] | 8.1 | 13.3 | 17.3 |
C50/60 [kN] | 8.9 | 14.6 | 19.0 |
Perm. tensile load non-cracked concrete | |||
C20/25 [kN] | 7.6 | 13.2 | 17.2 |
C25/30 [kN] | 8.3 | 14.4 | 18.8 |
C30/37 [kN] | 9.3 | 16.0 | 20.9 |
C40/50 [kN] | 10.8 | 18.7 | 24.3 |
C50/60 [kN] | 11.8 | 20.4 | 26.7 |
Min. thickness of component hmin [mm] | 120 | 130 | 150 |
Charact. centre distance scr,N | 150 | 201 | 240 |
Charact. edge distance ccr,N | 75 | 100.5 | 120 |
Min. centre distance smin [mm] | 50 | 50 | 70 |
Min. edge distance cmin [mm] | 50 | 50 | 70 |
Clearance hole in component ≤ [mm] | 16 | 16 | 16 |
Perm. bending moment Mzul [Nm] | 64.6 | 64.6 | 64.6 |
Recommended max. torque Tinst [Nm] | 60 | 60 | 60 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
Anchoring depth hnom1 65 mm | Anchoring depth hnom2 85 mm | Anchoring depth hnom3 100 mm | |
---|---|---|---|
Perm. tensile load R30 perm. [kN] | 3.0 | 4.9 | 6.4 |
Perm. tensile load R60 perm. F [kN] | 3.0 | 4.9 | 5.8 |
Perm. tensile load R90 perm. [kN] | 3.0 | 4.2 | 4.2 |
Perm. tensile load R120 perm. [kN] | 2.4 | 3.4 | 3.4 |
Charact. centre distance scr,fi | 200 | 268 | 320 |
Charact. edge distance ccr,fi | 100 | 134 | 160 |
Multiple fixing:
Extract from application conditions of ETA-16/0656
For multiple mounting solutions of non-load-bearing systems acc. ETAG 001, part 6.
Safety factor acc. ETAG 001 is included ( YM YF ).
The perm. loads per fixing point for the respective countries are regulated in ETAG 001, part 6.
Anchoring depth 35 mm | Anchoring depth 55 mm | |
---|---|---|
Drive | SW13 | SW13 |
Nominal diameter of drill d0 [mm] | 6 | 6 |
Depth of bore hole h1 [mm] | 40 | 60 |
Perm. tensile load in cracked concrete | ||
C20/25 [kN] | 0.6 | 3.6 |
C25/30 [kN] | 0.7 | 3.9 |
C30/37 [kN] | 0.7 | 4.3 |
C40/50 [kN] | 0.8 | 5.1 |
C50/60 [kN] | 0.9 | 5.5 |
Zul. Perm. tensile load in non-cracked concrete | ||
C20/25 [kN] | 0.6 | 3.6 |
C25/30 [kN] | 0.7 | 3.9 |
C30/37 [kN] | 0.7 | 4.3 |
C40/50 [kN] | 0.8 | 5.1 |
C50/60 [kN] | 0.9 | 5.5 |
Min. thickness of component hmin [mm] | 80 | 100 |
Charact. centre distance scr,N | 81 | 132 |
Charact. edge distance ccr,N | 40.5 | 66 |
Min. centre distance smin [mm] | 35 | 40 |
Min. edge distance cmin [mm] | 35 | 40 |
Clearance hole in component ≤ [mm] | 8 | 8 |
Recommended max. torque Tinst [Nm] | 10 | 10 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
Anchoring depth 35 mm | Anchoring depth 55 mm | |
---|---|---|
Perm. tensile load R30 perm. F [kN] | 0.38 | 0.9 |
Perm. tensile load R60 perm. F [kN] | 0.38 | 0.8 |
Perm. tensile load R90 perm. F [kN] | 0.38 | 0.6 |
Perm. tensile load R120 perm. F [kN] | 0.30 | 0.4 |
Charact. centre distance scr,N | 108 | 176 |
Charact. edge distance ccr,N | 54 | 88 |
Prestressed concrete hollow plate ceilings C30/37 to C50/60
Anchoring depth hnom [mm] | ≥ 35 | ||
Nominal diameter of drill d0 [mm] | 6 | ||
Depth of bore hole h1 [mm] | 40 | ||
Recommended max. torque Tinst [Nm] | 10 | ||
Level size db [mm] | ≥ 25 | ≥ 30 | ≥ 35 |
Perm. tensile load [kN] | 0.4 | 0.8 | 1.2 |
Min. centre distance smin [mm] | 100 | 100 | 100 |
Min. edge distance cmin [mm] | 100 | 100 | 100 |
For calculation the whole approval is to be respected.
Material: | Steel, zinc flake coated |
Approvals / Compliance
Approvals ETA-16/0655 and ETA-16/0656
Screwbolt TSM - ETA 16/0655 PDF | 1.8 MB Screwbolt TSM - ETA 16/0656 PDF | 1.8 MB Screwbolt TSM DoP No. SIKLA 710 Single use PDF | 803.1 KB Screwbolt TSM DoP No. Sikla 721 Multiple use PDF | 921.6 KB
* Only to be used as multiple fixing for non-load-bearing systems in concrete and prestressed concrete hollow plate ceilings.
