Assembly System siMetrix 46

Insulated Foot SHB SQF 46

Application

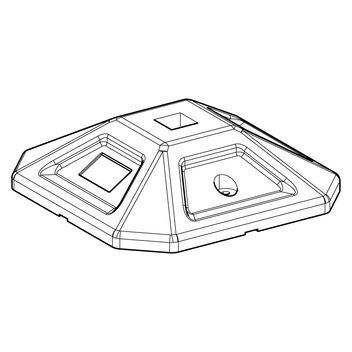

Integrated foot plate made of synthetic rubber. Providing a non-penetrative supporting base for low level siMetrix 46 structures. Suitable for equipment, pipes, ventilation ducts or walkways.

Installation

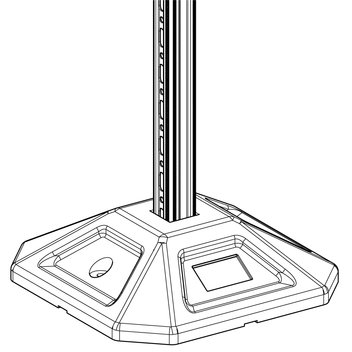

Insert the Profile PRO 46 into the Insulated Foot's slot. No fixing required.

Technical Data

Type
max. perm. pressure
load FN [kN]
Height
[mm]
Insertion depth
[mm]
SQF 350 16 100 60
SQF 500 16 130 90

Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the roofing material the customer shall decide if an additional separation layer (e.g. fleece) is necessary.

Material:
Styrene butadiene rubber

TypePlate
dimensions [mm]
W
[kg]
Quantity
[pack]
Part
number
SHB SQF 46 - 350350 x 3505,001 803651
SHB SQF 46 - 500500 x 50013,501 803652
