Assembly System siMetrix 46

Joining Plate AP 46

Application

Interface element to enable the connection of a Cantilever Bracket AK 46 or a WBD 46 to steel beams with beam flange widths of 80 to 120 mm.

Scope of delivery

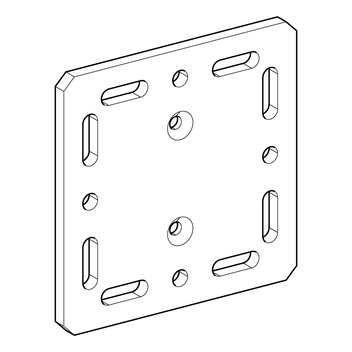

Joining Plate

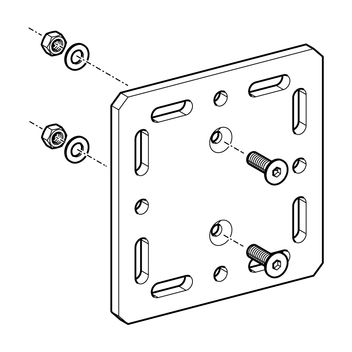

Mounting Set AP:
2 Countersunk Bolts M10 x 35 - 8.8
2 Hexagon Nuts M10
2 Washers

Installation

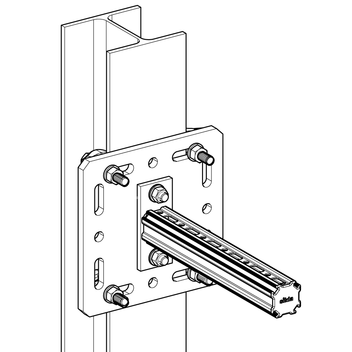

Form locking connection of joining plate with Cantilever Bracket AK 46 or WBD 46 using countersunk Screws and nuts. Force-locking fastening to steel beams using Assembly Set MS 5P M12 S.

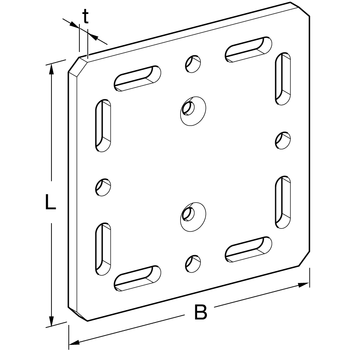

Technical Data

L
[mm]
B
[mm]
t
[mm]
Round holes
for
Connection to
flange width [mm]
Tightening torque
Mounting Set [Nm]
220 220 12 M12 80 - 120 81

Material:
Joining Plate:
Steel, HCP
Screws:
DIN EN ISO 10642 Steel, property class 8.8, HCP
Nuts:
Steel, property class 8, HCP
Washers
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
AP 46 80-1204,201 802158
