Assembly System siMetrix 46

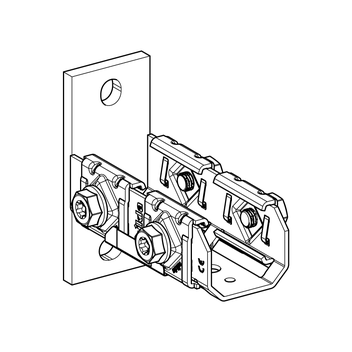

End Support WBD 46
Application

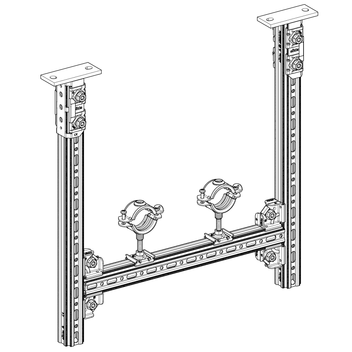

In combination with Profile PRO 46, End Support WBD 46 is particularly suitable for:
- brackets for wall, floor and ceiling mounting
- free standing frame constructions
Installation
Connection to the building structure using Bolt Anchors AN BZ plus or heavy-duty anchors. Alternatively, fastening to steel beams using Joining Plate AP 46 80/120 (part no. 802158).
Technical Data

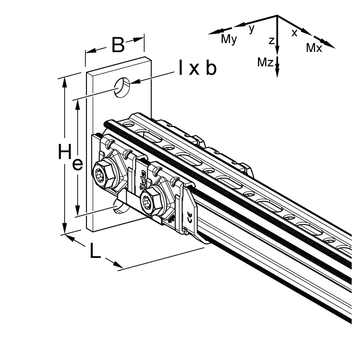

| H [mm] | B [mm] | L [mm] | d [mm] | e [mm] | l x b [mm] | No. of Blocks with screws laterally |
|---|---|---|---|---|---|---|
| 120 | 50 | 137 | 13 | 90 | 15 x 13 | 4 x M10 |
| Type | Vx,zul [kN] | ± Vy,zul [kN] | Vz,zul [kN] | - Vz,zul [kN] | My,zul [kNm] | - My,zul [kNm] | ± Mz,zul [kNm] |
|---|---|---|---|---|---|---|---|
| WBD 46 | 1,62 | 2,44 | 2,64 | 3,55 | 0,41 | 0,36 | 0,39 |
| Configuration: | Base plate welded to profile intake |
| Required tool: | T50 Bit or 17 mm (AF) Socket Bit |
| Tightening torque: | 20 Nm |
| Material: | Steel, HCP |
