Stabil D-2G/-3G ss w/Lining
For the installation of pipes required for all M&E services in industrial, residential and public buildings.
Particularly suitable for soundproof pipe installation according to DIN 4109.
Scope of delivery

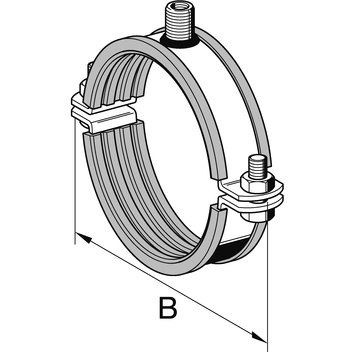

Two-piece pipe clamp with clamping bolts and nuts (supplied loose).

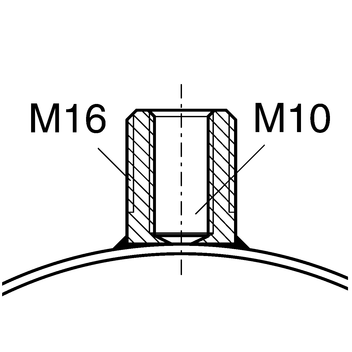

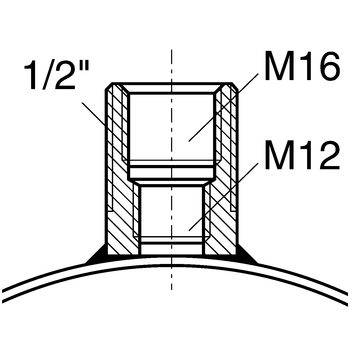

Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1" using an adapter.
| Max. adm.|
| Tightening torque|
|18 - 63||1,5 kN|| 3|
|74 - 114||2,0 kN|| 5|
|133 - 168||4,0 kN|| 10|
|198 - 219||6,0 kN||20|
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
| Pipe clamp:|| Stainless steel A4|
| Sound absorption lining: ||SBR/EPDM, black (see chapter "Sound Absorption Products")|
Approvals / Compliance
| ||This product has been awared the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.|
