Stainless Steel Products

Stabil D-2G/-3G ss

Application

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

Two-piece pipe clamp with clamping bolts and nuts (supplied loose).

Installation

Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1" using an adapter.

Technical Data

Size range
[mm]
Max. adm.
load (tension)
Tightening torque
[Nm]
18 - 71 5.0 kN 3
74 - 78 5.0 kN 5
81 - 122 6.0 kN 5
133 - 207 8.0 kN 10
210 - 231 11.0 kN 20

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Material:
Stainless steel A4

Approvals / Conformity



This product has been awared the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

Size range
[mm]
Thread
connection
Material
W x th
[mm]

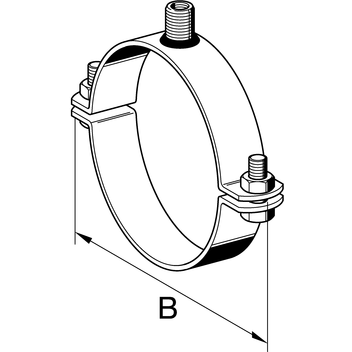

B
[mm]
W
[kg]
Quantity
[pack]
Part
number
18 - 222G25 x 3700,1450 172568
24 - 282G25 x 3770,1550 172577
30 - 342G25 x 3840,1650 172586
35 - 372G25 x 3870,1750 172595
40 - 442G25 x 3950,1750 172604
47 - 512G25 x 31020,2050 172613
54 - 582G25 x 31090,2150 172622
59 - 632G25 x 31150,2150 172631
67 - 712G25 x 31230,2250 172856
74 - 782G30 x 31400,3325 172640
81 - 852G30 x 31470,3425 172865
86 - 903G30 x 31520,3625 172649
94 - 983G30 x 31600,4025 172874
102 - 1083G30 x 31700,4125 173153
108 - 1143G30 x 31760,4225 172658
116 - 1223G30 x 31840,4325 172883
133 - 1403G40 x 42170,8210 172667
145 - 1523G40 x 42290,8710 172892
159 - 1693G40 x 42450,9010 172676
170 - 1803G40 x 42570,9510 172901
198 - 2073G40 x 42841,0810 172685
210 - 2193G40 x 43041,2610 172694
222 - 2313G40 x 43161,3310 172910
