Stainless Steel Products

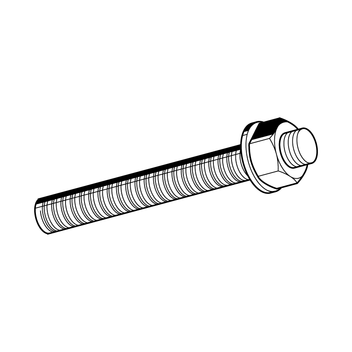

Resin Anchor Rod VMU-A A4
Application
Anchor Rod to put-before mounting, to be used with Injection Systems VMU plus, VME plus and VMH. For anchoring in concrete or in brickwork only with VMU plus. Due to the variable anchoring depth the effective embedment depth can be adjusted to the requested load. Suitable for indoor and outdoor use.
- No special drill required
- Heavy loads
- Small edge and centre distances
- Approved for use under seismic action according to the performance categories C1 and C2 (depending on the mortar).
Scope of delivery
Pre-assembled with washer and hexagon nut.
Installation
| 1. | Drill hole according to min. setting depth vertically to the surface. |
| 2. | Careful cleaning of drill hole with Steel brush and Blow-Out pump. |
| 3. | Screw Mixing Nozzle onto the cartridge; foreshots to be removed and fill 2/3 of drill hole with resin, starting from botton of the hole. |
| 4. | Drive the anchor manually into plastered borehole up to its embedment mark. |
| 5. | When reaching the embedment mark, plaster must be apparent. |
| 6. | Respect hardening time, when tighten the anchor with instructed torque. |

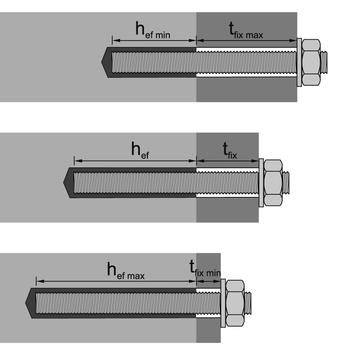

Image 2: hef + tfix = usable length of the threaded rod (without nut and washer)
Detailed assembly instruction is attached to the product.
Technical Data
Detailed technical information see respective injection systems.
| Material: | Stainless steel A4 |
Approvals / Conformity
Sikla Approval ETA 15/0270, ETA 17/0307
Approval ETA 17/0716, 19/0483
VdS-compliant for all sizes
1) Delivery date on request - goods are procured on an order-related basis.
