Slide Supports

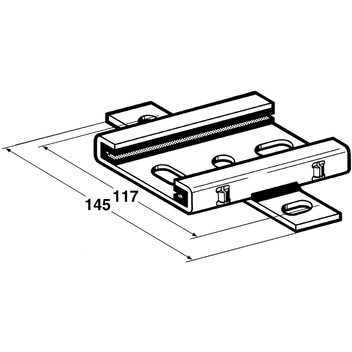

Slide Set GS 2G-PL

Application

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers.
To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G.

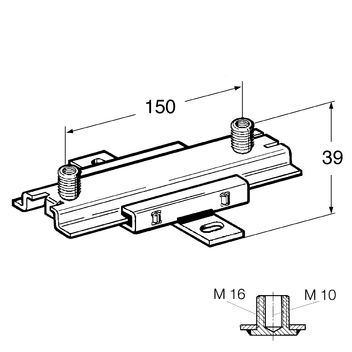

Various connection options with these pipe clamps ranging between M10 and R1". For adapters for these connection options (see Adapter AD f/f).
Sound absorption by means glass fibre reinforced PA slide rails.
When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

Technical Data

Permissible load for ceiling mounting:
0.6 kN
Permissible load for floor mounting:
1.2 kN
Temperature range (permanent exposure):
130°C

Version GS:
Static friction coefficient µ0 :
0.18
Sliding friction coefficient µ:
0.14

Version GS ULTRAglide:
Static friction coefficient µ0 :
0.07
Sliding friction coefficient µ:
0.07

Material:
Metal components:
Steel, electro-galvanised
Slide bar:
Polyamide, glass fibre reinforced
Version ULTRAglide:
With additional Nano coating

Type
max. lever arm
[mm]
max. lever arm
ULTRAglide
[mm]
max. slide path s
[mm]
2G 150 300 85
2G2 150 300 140

Adm. load FZ * under stress of fire

FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
≤ 600 ≤ 430 ≤ 280 ≤ 200

FZ = max. adm. load

* The load capacity of the connecting elements used is to be respected, this applies in particular under stress of fire.

TypeW
[kg]
Quantity
[pack]
Part
number
2G-PL0,5425 127127
2G2-PL0,6525 127136
2G-PL ULTRAglide0,5425 110583
2G2-PL ULTRAglide0,6525 110585
