Slide Supports

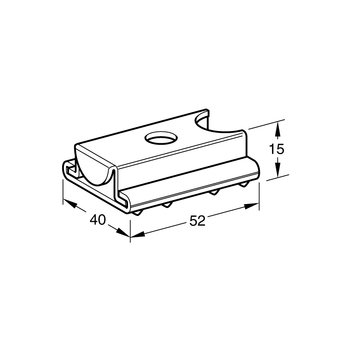

Slide Set GS 1G

Application

Slide Set for mounting of small pipe lines with possible elongation of length. Space-saving and thus also to be used for smaller centre distances, especially in combination with pipe clamps Ratio S and LS. The stop at the skid avoids the pipe line from sliding and at the same time is a comfortable guide for rising pipes. Guiding corrugations guarantee the exact 90° arrangement and avoid the screwing up of the slide set.

Installation

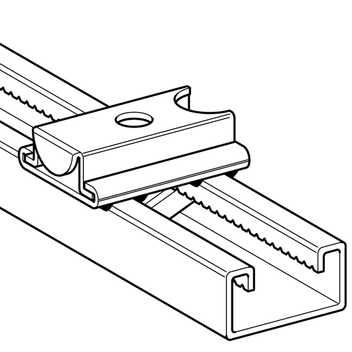

Connection to Channel System 41, ideally use flange screw SCR FLA M10 x 20 A4. Fixation with hexagon bolt M8 or M10 is also possible.

Technical Data

Permissible load for ceiling mounting:
0.6 kN
Permissible load for floor mounting:
1.2 kN
Lever arm Lmax :
75 mm
Permissible bending moment for wall mounting:
20 Nm
Maximum sliding distance:
45 mm
Static friction coefficient µ0 :
0.15
Sliding frition coefficient µ:
0.13

Material:
Steel, electro-galvanised
TypeThread
connection
W
[kg]
Quantity
[pack]
Part
number
1GM100,0825 198834
