siFramo 80

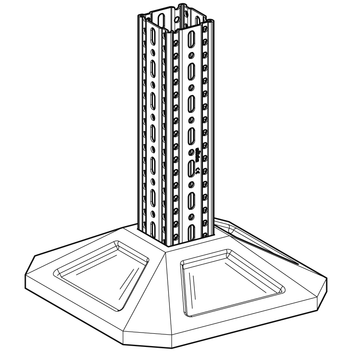

Insulated Foot SHB SQF F 80

Application

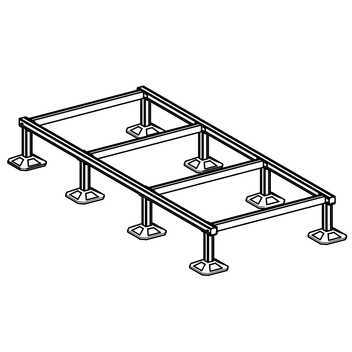

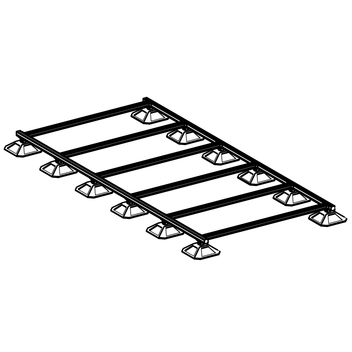

Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System siFramo 80 any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways.

The Beam Section TP F 80 can be mounted to the Insulated Foot SHB SQF F 80.

Installation

Insert the Beam Section TP F 80 into the Insulated Foot's slot.

Technical Data

Type
max. perm.
pressure load FN [kN]
Height
[mm]
Insertion depth
[mm]
SQF 350 16 100 70
SQF 500 16 130 90

Die systembedingte Haftreibung ist bauseits zu ermitteln. Abhängig von der verwendeten Dachfolie wird der Einsatz einer zusätzlichen Trennschicht empfohlen. Die Lasteinleitung ins Bauwerk ist bauseits zu prüfen.

Material:
Styrene butadiene rubber
TypePlate
dimensions [mm]
W
[kg]
Quantity
[pack]
Part
number
SHB SQF F 80-350350 x 3505,01 218865
SHB SQF F 80-500500 x 50013,51 218868
