Pivot Joint GE F 100
Application
Applicable as a bracing element for single-arm cantilevers in conjunction with siFramo 100 section, and for the knee-brace reinforcing of siFramo frame constructions. The pivot can be installed with angles from 25° to 155°.
Installation
Attachment of the Joints to Beam Section TP F 100 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 or TP F 100 (depending on joint type) plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total. The cutting length of the support profile can be determined by the table below-mentioned. After installation at the desired angle the screws have to be tightened with 40 Nm.
Technical Data

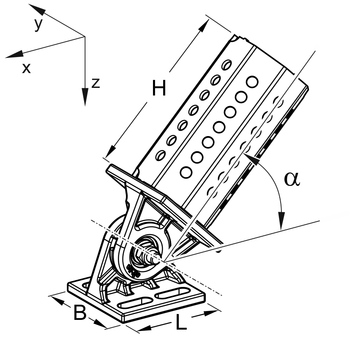

| Type | Height H [mm] | Length L [mm] | Width B [mm] | Angle α | Dimensions of base plate [mm] |
|---|---|---|---|---|---|
| GE F 100 - 80 | 140 | 100 | 100 | 25° - 155° | - |

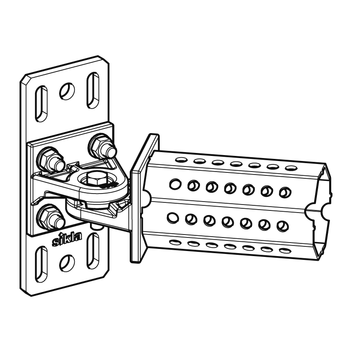

| GE F 100 - 80 q | 140 | 100 | 80 | 25° - 155° | 210 x 100 x 8 |
| GE F 100 - 100 | 180 | 100 | 100 | 25° - 155° | - |
| GE F 100 - 100 q | 180 | 100 | 100 | 25° - 155° | 210 x 100 x 8 |

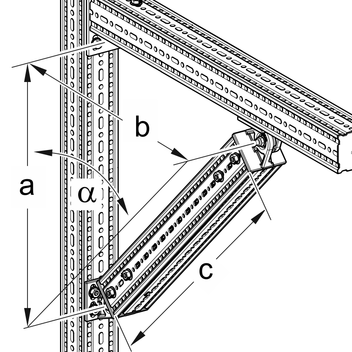

Cutting length c of support profile between two joints:
| b [mm] 1000 | b [mm] 1500 | b [mm] 2000 | b [mm] 2500 | ||
| α | a [mm] | c [mm] | c [mm] | c [mm] | c [mm] |
| 25° | 2095 | 2155 | 3340 | 4525 | 5710 |
| 30° | 1701 | 1810 | 2810 | 3810 | 4810 |
| 35° | 1410 | 1565 | 2435 | 3305 | 4180 |
| 40° | 1184 | 1380 | 2160 | 2940 | 3720 |
| 45° | 1000 | 1245 | 1955 | 2660 | 3370 |
| 50° | 846 | 1145 | 1800 | 2450 | 3100 |
| 55° | 713 | 1060 | 1670 | 2285 | 2895 |
| 60° | 596 | 1000 | 1580 | 2155 | 2730 |
| 65° | 489 | 950 | 1500 | 2055 | 2605 |
| a = | vertical length from centerline of joint to bottom of profile at connection |
| b = | horizontal length of cantilever from connection to centerline of joint |
| c = | cutting length of support profile between two joints |
| α = | angle at the opposite of the vertical bracing |
| Material: | Steel, HCP |
