siFramo 100

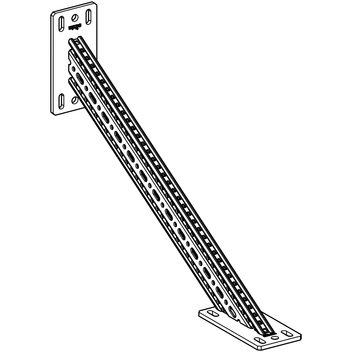

Bracing Arm SKO F 100

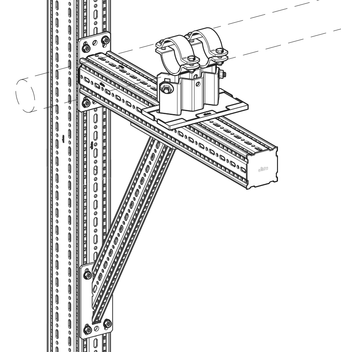

Application
Bracing arm for reinforcement of frames made from Beam Section TP F100 and/or Cantilever Bracket AK F100.
Installation

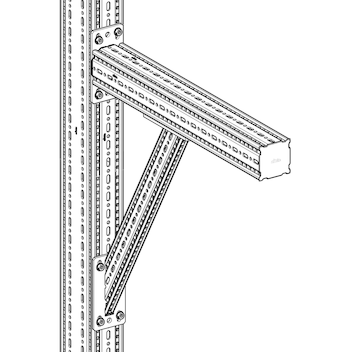

- With 2x4 Self Forming Screw FLS when used inside a corner of two F100 size hollow-box sections.
- With 4x Self Forming Screw FLS and 2x suitable wall anchors/fixings when used to connect between one
F 100 size hollow-box section and the building structure.
Technical Data

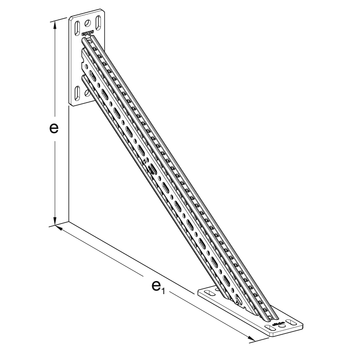

| Type | Dimensions of Base plate [mm] | e [mm] | e1 [mm] |
|---|---|---|---|
| SKO F 100 | 210 x 100 x 8 | 450 | 710 |
| Material: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
Declaration of performance Bracing Arm SKO F PDF | 39.5 KB
