siFramo 100

Assembly Set MS 5P

Application

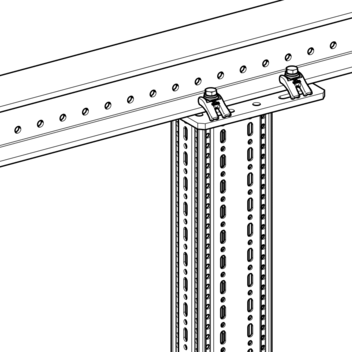

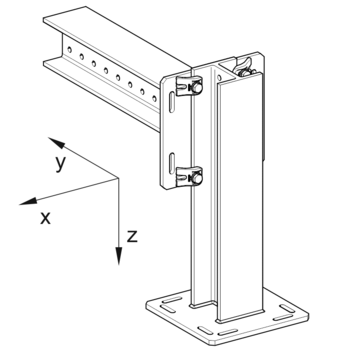

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

Scope of delivery

Type

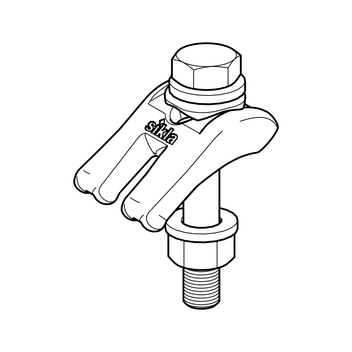

Beam Clip
[Quantity]
Support plate
[Quantity]
HR trimming *
[Quantity]
M12 S 4 x M12 4 x M12 4 x M12 x 80
M16 S 4 x M16 4 x M16 4 x M16 x 100
M12 S2 2 x M12 2 x M12 2 x M12 x 80

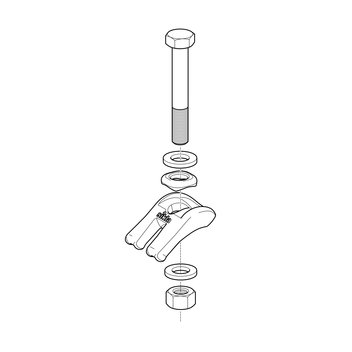

* HR trimming according EN 14399-3 consisting of: Hexagon bolt M12 or M16, 2 washers, 1 hexagon nut

Installation

1.
Position Beam Clip with the split end on beam section.
2.
Install support plate and HR trimming and tighten accordingly.

The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the HR trimming a continuous and predictable preload force is guaranteed.

Technical Data

Type
Size range
[mm]
Tightening torque MA
[Nm] /
plus 90° revolution
Fy permitted
per Beam Clip
[kN]
Shear force load capacity Fz
per set = 4 Beam Clips
[kN]
M12 S 1 - 30 60 / 90° 26,3 12,0 *
M16 S 4 - 40 140 / 90° 32,0 13,6 *

* The specified data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µadhesion = 0,20.
A possibly operating tensile force Fy isn't included.

Material:
Steel, HCP
TypeW
[kg]
Qty.
[set]
Part
number
M12 S1,210 115843
M16 S2,210 115844
M12 S20,610 115845
