Pressix CC 41 - Assembly System

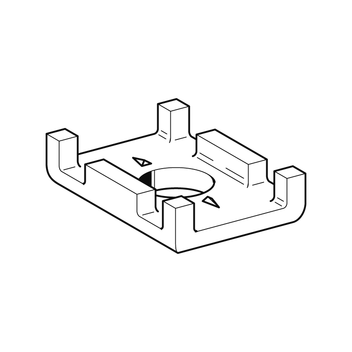

Holding Bracket HK 41

Application

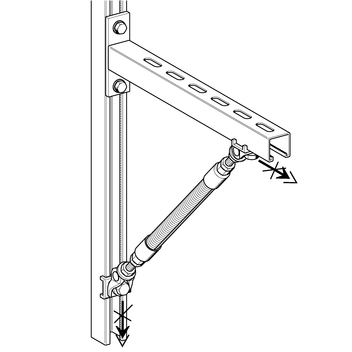

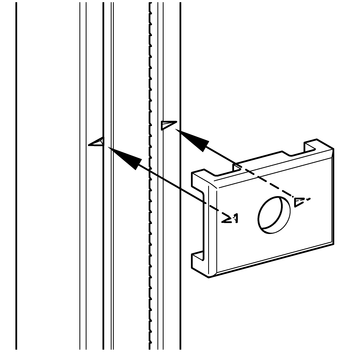

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposing along the channels, 41 Holding Brackets provide for additional safety due to embossed teeth, which penetrate the channel. Suitable for single and double channels.

Special blanking guarantees high security and shear force after achieving form closure, especially for screwed through connecting elements.

Technical Data

Material:
Cast iron, electro-galvanised
TypeSuitable for Sikla
channels of width [mm]
Bore
[mm]
W
[kg]
Quantity
[pack]
Part
number
41/1041110,0650 178247
41/1241130,0750 178256
41/1641170,0750 178265
