Pressix CC 41 - Assembly System

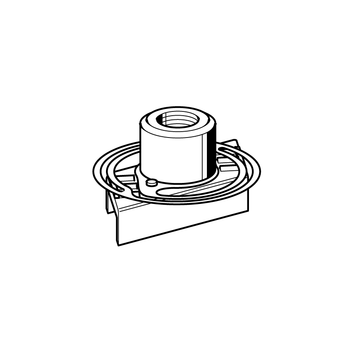

Adapter NT CC 41 DIN 3015

Application

For efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41. Particularly useable for assembly in vertical channels or positions difficult to access, this piece replaces the "3rd hand" and offers following further advantages:

  • Compatible with all Sikla Channels MS 41, regardless of the channel's height.
  • No getting stuck of screw heads while moving inside the channel.
  • Plane fixation without projecting after tightening.

Scope of delivery

Channel nut, spring and thread connection pre-assembled.

Installation

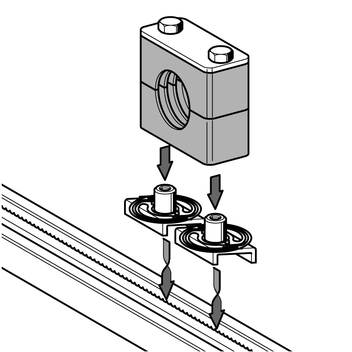

After inserting the Adapter CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.

Technical Data

Material:

Channel nut, thread connection:
Steel, electro-galvanised
Spring washer:
Spring steel sheet, rustproof

Pipe clamps DIN 3015-1 (series A, light range)

Pipe size
Pipe-outer dia. [mm]
Connection with with

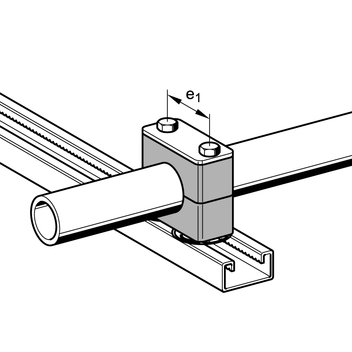

e1
0 6 to 12 1 x Adapter NT CC 41 M6
1 6 to 12 2 x Speed Nuts CC 41 M6 20 1)
2 12.7 to 18 2 x Speed Nuts CC 41 M6 26 1)
3 19 to 25 2 x Speed Nuts CC 41 M6 33 1)
4 26.9 to 30 2 x Adapters NT CC 41 M6 40
5 32 to 42 2 x Adapters NT CC 41 M6 52
6 44,5 to 57 2 x Adapters NT CC 41 M6 66
7 57.2 to 76.1 2 x Adapters NT CC 41 M6 94
8 88.9 to 101.8 2 x Adapters NT CC 41 M6 120

Pipe clamps DIN 3015-2 (series C, heavy-load range)

Pipe size
Pipe outer dia. [mm]
Connection with
e1
1 6 to 18 2 x Speed Nuts CC 41 M10 33 1)
2 19 to 30 2 x Adapters NT CC 41 M10 45
3 30 to 42 2 x Adapters NT CC 41 M10 60
4 38 to 70 2 x Adapters NT CC 41 M12 90

1)

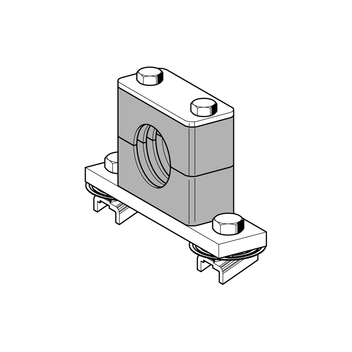

For these hole distances, the screw plate of the Clamp (see image 4), as well as each two Hexagon bolts and Channel Nuts NT CC 41 are necessary.

Pipe Clamps DIN 3015-3 (series B, double range)

Pipe size
Pipe outer dia. [mm]
Connection with
1 6 to 12 1 x Adapter NT CC 41 M6
2 12.7 to 18 1 x Adapter NT CC 41 M8
3 19 to 25 1 x Adapter NT CC 41 M8
4 26.9 to 30 1 x Adapter NT CC 41 M8
5 32 to 42 1 x Adapter NT CC 41 M8
TypeW
[kg]
Quantity
[pack]
Part
number
M60,04100 110005
M80,04100 110016
M100,04100 110006
M120,07100 110007
