Pressix CC 27 - Assembly System

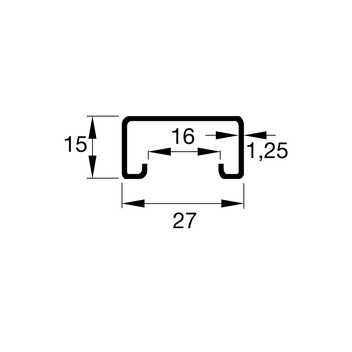

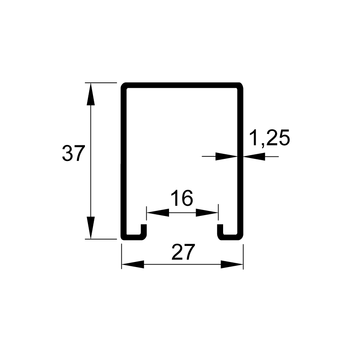

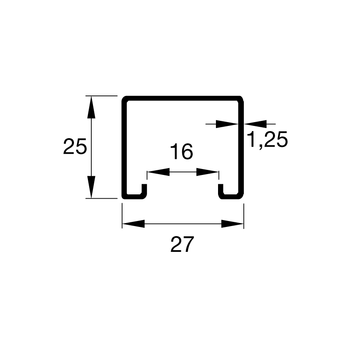

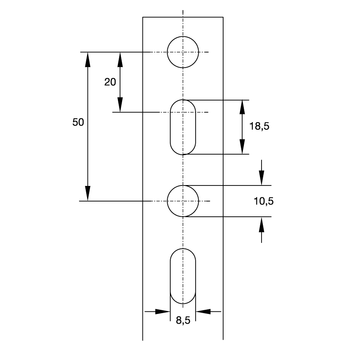

Channels MS 27/15, 27/25 and 27/37

Channel MS 27 - 1,25

Permissible load with centrical load application

L
[cm]
27/15/1,25
[N]
27/25/1,25
[N]
27/37/1,25
[N]
20 896 2031 3576
40 447 1015 1786
60 297 675 1189
80 170 505 890
100 107 388 710
120 73 274 590
140 52 199 504
160 38 150 413
180 28 116 323
200 21 91 259
220 15 73 210
240 11 59 173
260 7 47 144
280 4 38 121
300 2 31 102

The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.

σperm ≤ 185 N/mm2
f ≤ L/200
