Application

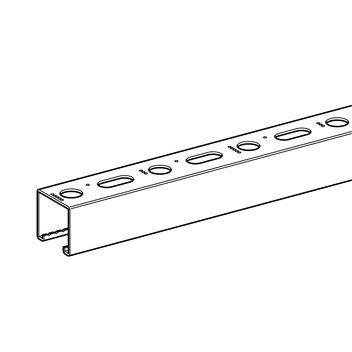

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops.
All products within the Pressix CC 27 range are compatible with Channel MS 27.

Installation

Fixation of the channel easily could be achieved using Nail Anchor PN and Screwbolt TSM-LPS.

Technical Data

Material:
Steel 1.0350, pre-galvanised according to DIN EN 10346

Type

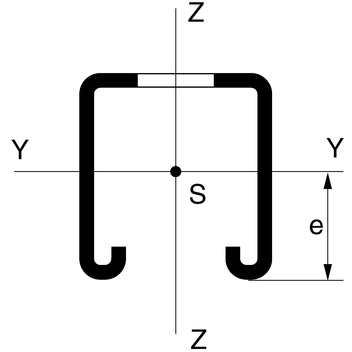

B/H/s [mm]
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of gyration
[cm]
27/15/1.25
Wy : 0.25
Wz : 0.64
ly : 0.20
lz : 0.86
iy : 0.54
iz : 1.13
27/25/1.25
Wy : 0.55
Wz : 0.95
ly : 0.72
lz : 1.28
iy : 0.92
iz : 1.30
27/37/1.25
Wy : 1.03
Wz : 1.31
ly : 1.97
lz : 1.78
iy : 1.27
iz : 1.21

Type
B/H/s [mm]

Cross section
A [cm2 ]

Distance
e [cm]

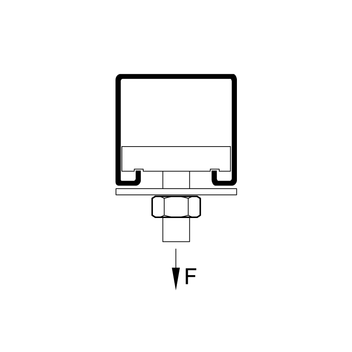

Max. point
carrying capacity
Fmax (traction) [kN]
perm. torsional
moment
Mq [Nm]
27/15/1.25 0.67 0.80 1.5 10
27/25/1.25 0.92 1.30 1.5 10
27/37/1.25 1.22 1.91 1.5 10

Note: All values refer to slotted channels.

Permissible load with centrical load application PDF | 85.1 KB Permissible load with two point loads PDF | 88.1 KB Permissible load with three point loads PDF | 82.0 KB Permissible load with distributed load PDF | 84.9 KB Slot pattern and measurements PDF | 107.5 KB

Load chart:

Channels MS 27/15, 27/25 and 27/37

Approvals / Conformity



This product has obtained the "RAL Gütezeichen Rohrbefestigung" and is subject to external surveillance according to RAL GZ-655.

TypeLength
[m]
Weight
[kg/m]
Qty.
[m]
Part
number
27/15/1,2520,6020 110856
27/15/1,2530,603 112885
27/15/1,2560,6036 111725
27/25/1,2520,7920 110857
27/25/1,2530,793 112886
27/25/1,2560,7936 110858
27/37/1,2520,8920 110569
27/37/1,2560,8924 110570
