Application

Additional safety feature for Beam Clamps supporting tubes of nominal diameter NB 80 and larger, required for installations meeting the Vds standard.
Dimensions and material meet the VdS CEA-guideline for Sprinkler systems.

Installation

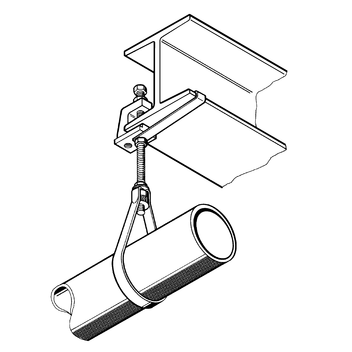

The safety strap is bent on the construction site to the form of the beam, so that it securely encompasses the edge of the beam flange.

Technical Data

Application

Type I: NB 80 - NB 100
Type II: NB 125 - NB 150
Type III: NB 200

Material:
Steel strip, pre-galvanised

TypeLength
[mm]
Bore
[mm]
Dimensions
w x th [mm]
W
[kg]
Quantity
[pack]
Part
number
SL 14001120 x 2,50,1650 116798
SL 24001330 x 2,50,2350 116804
SL 34001740 x 3,00,3650 116813
