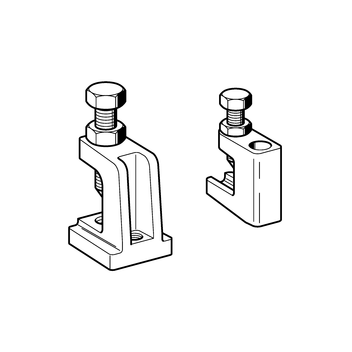

Beam Clamp TCS
Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams).
- The combination with a Universal Joint provides for vertically aligned attachment to inclined beams.
- Can serve as single mounting element for installing crossbars and for fixing cantilever structures.

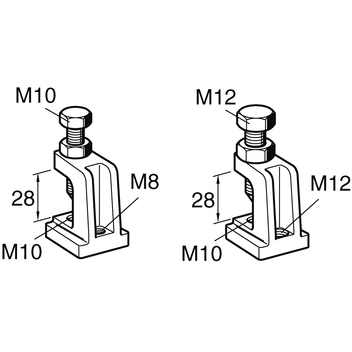

- Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels of the 41 series.
Scope of delivery
Pre-assembled with clamping bolt and locking nut.
Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting structures. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
For installation near a cutting edge of a channel, an additional Holding Bracket HK 41 has to be mounted.
| Note: || Respect relevant mounting instructions!|
| ||For FM-construction use thread ≥ M10 only!|
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.
|Working load:|| Type TCS 0: 3.5 kN |
| Type TCS 1: 5.0 kN |

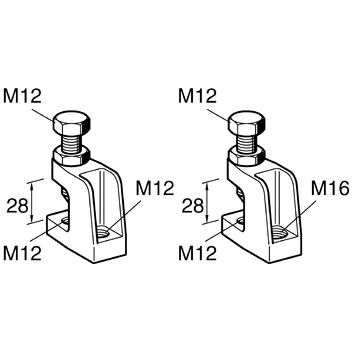

| Type TCS 2: 8.5 kN |
| Material:||Body in cast-iron, electro-galvanised and clamping bolts in steel, class 8.8., electro-galvanised|
Approvals / Conformity
Approved and accepted by VdS and FM for use with stationary fire extinguishing systems.

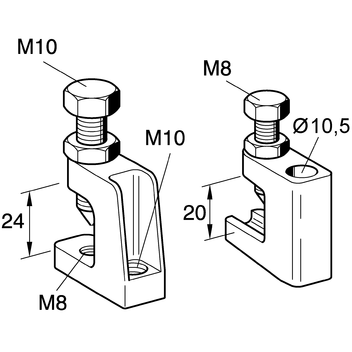

TCS O LC Approval: G4950065 and G4950066 (erected mounting with M10 up to a maximum height hmax = 150 mm and up DN 50 only). For further types and different application fields: G4820023; G4830054; G4800039/ ...45; G4990027.
Beam Clamp TCS 0LC - G4950065 VdS PDF | 652.0 KB Beam Clamp TCS 0LC - G4950066 VdS PDF | 658.3 KB Beam Clamp TCS1 M10/M10 - G4820023 VdS PDF | 208.8 KB Beam Clamp TCS 0 - G4830054 VdS PDF | 931.6 KB Beam Clamp TCS1 - G4800039 VdS PDF | 246.4 KB Beam Clamp TCS with Safety Strap - G4800040 VdS PDF | 268.5 KB Beam Clamp TCS2 with Safety Strap - G4800042 VdS PDF | 274.8 KB Beam Clamp TCS - G4800043 VdS PDF | 352.7 KB Beam Clamp TCS - Double Support - G4800044 VdS PDF | 343.8 KB Beam Clamp TCS - Projecting Crossbar - G4800045 VdS PDF | 356.1 KB Beam Clamp TCS1 M10-M12 - G4990027 VdS PDF | 1001.3 KB FM - Beam Clamps TCS PDF | 239.9 KB
