Application

Suitable for the quick and easy mounting of components to a concrete soffit or shear wall. The internal dual thread M8/M10 allows for a direct easy connection with the Nail Anchor (e.g. M&E service supports).
The reduced drilling depth of 35 mm and the bore dia. of 6 mm minimise the risk of hitting a rebar during installation and reduces the overall cost of drilling.

Installation

Fast and simple setting of the Nail Anchor AN N M8/M10:

1. Drilling
2. Cleaning of bore hole
3. Hammer in - ready!

Technical Data

Verankerungs-
tiefe 25 mm
Verankerungs-
tiefe 30 mm
adm. load in the tensile zone [kN]
for anchorage in concrete accord. to approval ≥ C20/25
2.14 2.81
Centre distance scr ≥ [mm]
200 200
Edge distance ccr ≥ [mm]
100 100
min. thickness of concrete slab hmin [mm]
80 80

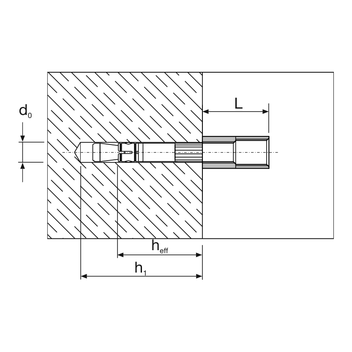

Drill hole dia. do [mm]
6 6
Depth of drill hole h1 ≥ [mm]
35 40
Effective anchorage depth hef ≥ [mm]
25 30
Length L [mm]
25 25
Thread
M8/M10 M8/M10

adm. load for fire exposure 1)
30 min. N(30) [kN]
0.6 0.8
60 min. N(60) [kN]
0.6 0.7
90 min N(90) [kN]
0.6 0.6
120 min. N(120) [kN]
0.5 0.6
R 30 bis R120
Centre distance scr ≥ [mm]
100 100
Edge distance ccr ≥ [mm]
50 50

1) Mit Gewindestange Festigkeitsklasse ≥ 5.8

Valid are the values of the mentioned approval which can be seen on our website www.sikla.com/service/downloads.

Material:
Steel, zinc-plated

Approvals / Compliance

Sikla approval ETA-13/0048
For the multiple use for non-structural applications in concrete (min. C12/15 and max. C50/60). Fire protection testing, VdS-conform





Nail Anchor AN - ETA 13/0048 PDF | 2.7 MB

TypeLength of
dowel
[mm]
Max. eff.
length da
[mm]
W
[kg]
Quantity
[pack]
Part
number
AN N M8/M10 6 x 2558M8 = 7 / M10 = 100,03100 112152
AN N M8/M10 6 x 3063M8 = 7 / M10 = 100,03100 117561
