Link Eye SCB | Sikla

Fixings and Fastenings

Link Eye SCB

Group:

1301

Technical Data

Satifies the VdS standards.

Material:

Cold-worked steel, electro-galvanised

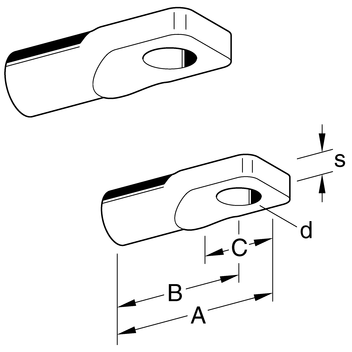

Type	A [mm]	B [mm]	C [mm]	s [mm]	d [mm]	Thread [mm]	W [kg]	Quantity [pack]	Part number
M8	46,5	35,5	22,0	5,5	11,0	12,0	0,03	100	124221
M10	50,5	39,5	22,0	6,5	12,0	15,0	0,04	100	124203
M12	56,1	43,5	23,0	7,5	13,0	21,0	0,10	100	150916
