Flat Leaf Bolt SCR

Group:

1303

Technical Data

Satifies the VdS standards.

Material:

Cold-worked steel, electro-galvanised

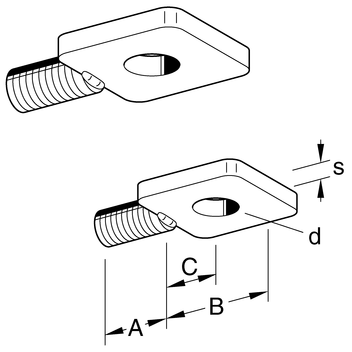

Type	A [mm]	B [mm]	C [mm]	d [mm]	s [mm]	W [kg]	Quantity [pack]	Part number
M8 x 20	20,0	33,0	17,0	10,0	4,5	0,03	100	102436
M8 x 40	40,0	33,0	17,0	10,0	4,5	0,04	100	102445
M10 x 20	20,0	33,0	16,0	12,5	4,8	0,03	100	102454
M10 x 40	40,0	33,0	16,0	12,5	4,8	0,04	50	102463
M12 x 40	40,0	33,0	16,0	12,5	6,0	0,06	50	102764
M16 x 25	22,0	40,0	33,0	17,0	10,0	0,12	25	101824
