Assembly System siMetrix 46

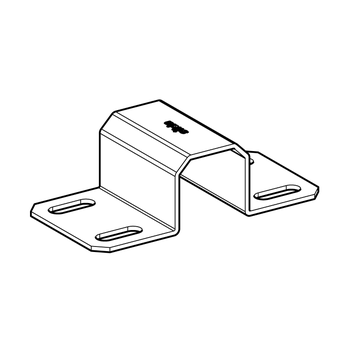

Profile Holder MPH 46

Application

Implementation of a cross connection between the different Sikla systems, siMetrix, siFramo and Siconnect.
Type MPH PRO 46 W for concrete connection.

Scope of delivery

Typ PRO 46 - 41:
pre-assembled in a set with 2 x Blocksets
Typ MS 41 - 46:
pre-assembled in a set with 2 x Speed Nuts

Installation

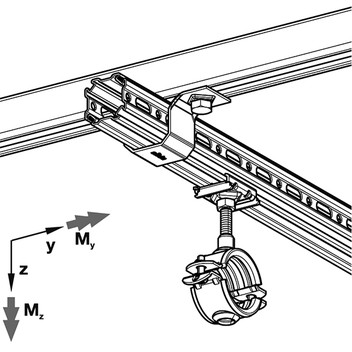

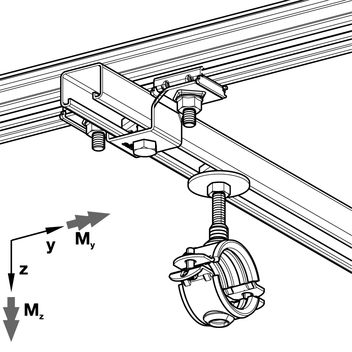

Connection of a Profile PRO 46 to a beam section TP F 80 or 100 with self forming screws FLS F. The combination of the Profile PRO 46 and Channel MS 41 is made using speed nuts. The cross connection of the Channel MS 41 to the Profile PRO 46 is made on both sides with the block PBH 46.

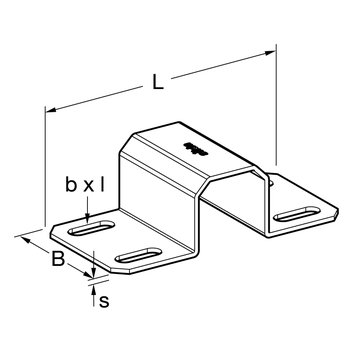

Technical Data

Type
L
[mm]
B
[mm]
s
[mm]
b x l
[mm]
MPH F 80 - 46 162 80 3.0 20 x 11
MPH F 100 - 46 162 100 3.0 20 x 11
MPH PRO 46 - 41 127 40 2.5 -
MPH MS 41 - 46 132 40 2.5 -
MPH PRO 46 W 132 40 2.5 -

Type
Fx
[kN]
Fy
[kN]
Fz
[kN]
My
[kNm]
Mz
[kNm]
MPH F 80 - 46 0.32 12.0 10.0 0.61 0.55
MPH F 100 - 46 0.36 14.0 12.5 0.99 0.92
MPH PRO 46 - 41 0.32 1.06 5.73 0.10 0.30
MPH MS 41 - 46 0.19 2.67 6.0 0.10 0.12
MPH PRO 46 W 0.32 1.06 5.73 0.10 0.30

Material
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
MPH F 80 - 460,4215 802546
MPH F 100 - 460,5410 802547
MPH PRO 46 - 410,3910 803866
MPH MS 41 - 460,1510 803867
MPH PRO 46 W0,1620 805343
