Assembly System siMetrix 46
Profile Coupling PK 46
Application

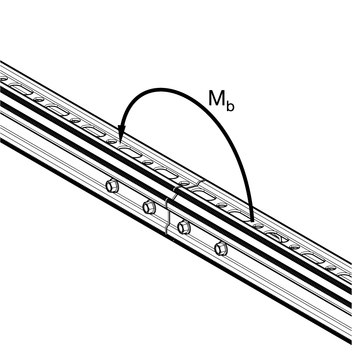

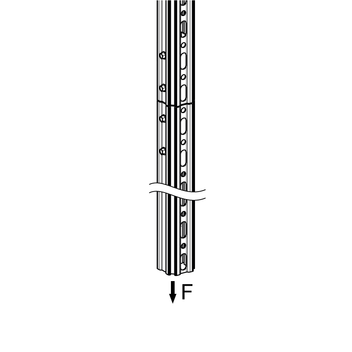

Internal connecting element for joining two Profiles PRO 46. Particularly suitbale for vertical extension. Should the component be used for horizontal application, the maximum permissible bending moment at the connection point must be observed.
Scope of delivery

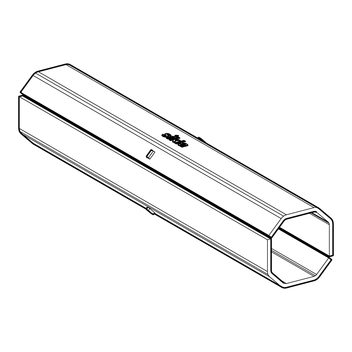

Profile Coupling PK 46
8 x Hexagon Drilling Screw SKB ST 5,5 x 16 HCP
Installation
Fix connection with 8 Hexagon Self-Drilling Screws SKB ST 5.5 x 16 HCP, maintaining the largest possible screw spacing for optimal leverage.
Technical Data

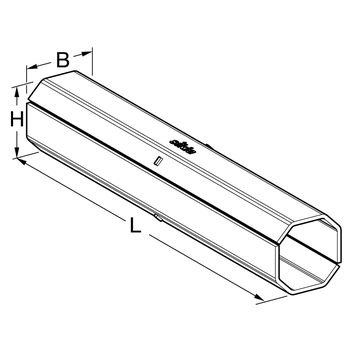

| Type | L [mm] | B [mm] | H [mm] | Fmax [kN] | Mb,max [kNm] | Socket Bit AF [mm] |
|---|---|---|---|---|---|---|
| PK 46 | 200 | 35 | 35 | 13,4 | 1,65 | 8 |
| Material: | Steel, HCP |
