Assembly System siMetrix 46

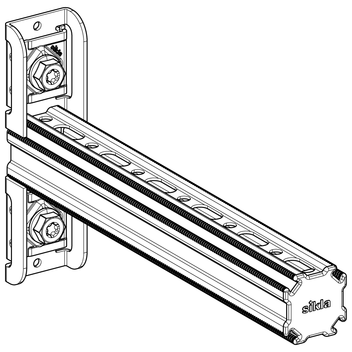

Cantilever Bracket AK CC 46-P
Application
Prefabricated single-arm cantilevers for the PRO 46 profile.

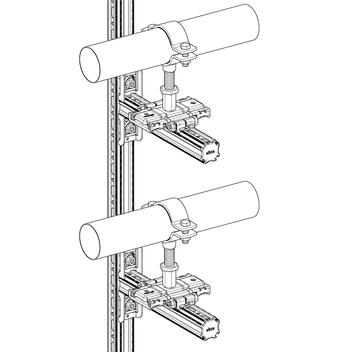

Installation
When used in conjunction with sliding elements, a cross brace (in combination with Tie Rod STR and Blockset PBS 46 M10 x 50) is recommended to resist forces in the axial direction of the pipe. For cantilever lengths ≥ 500 mm, a vertical brace or support (e.g. with tie rod STR and blockset PBS 46 M10 x 50) is recommended.

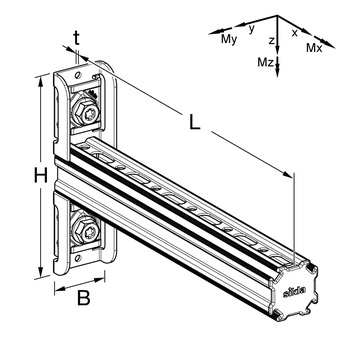

Technical Data
| Type | L [mm] | H [mm] | B [mm] | t [mm] |
|---|---|---|---|---|
| AK CC 46-P - 200 | 200 | 170 | 47 | 2,5 |
| AK CC 46-P - 400 | 400 | 170 | 47 | 2,5 |
| AK CC 46-P - 600 | 600 | 170 | 47 | 2,5 |
| AK CC 46-P - 800 | 800 | 170 | 47 | 2,5 |
| AK CC 46-P - 1000 | 1000 | 170 | 47 | 2,5 |
| Type | Vx,perm. [kN] | ± Vy,perm. [kN] | ± Vz,perm. [kN] | ± My,perm. [kNm] | ± Mz,perm. [kNm] |
|---|---|---|---|---|---|
| AK CC 46-P | 11,84 | 3,10 | 0,83 | 0,44 | 0,15 |
| Configuration: | Base plate welded to Profile PRO 46-P |
| Required tool: | T50 Bit or 17 mm (AF) Socket Bit |
| Tightening torque: | 20 Nm |
| Material: | Steel, HCP |
